This is Part 9 of a series on using State Machines to express complex logic.

In our last post in the series, we looked at how to fire events before state change.

In this post, we will look at how to handle situations where our code is calling asynchronous methods.

Let us take an example of a jukebox.

It has two buttons.

Play / Pause
1. Starts a song if one was not started
2. Pauses a song if it was playing
Stop
1. Stops playing the current song, whether playing or paused.

We can model this as follows:

First, our statuses:

public enum Status
{
    Playing,
    Ready,
    Paused
}

Next, our triggers:

public enum Trigger
{
    Play,
    Pause,
    Stop
}

In the days of yore, a jukebox had its media contained within.

But our 2025 jukebox allows us to wire in a media service responsible for fetching random music, that it returns as a stream.

This is it’s interface:

public interface IMediaService
{
    public Task<Stream> GetSong(int songNumber);
}

We then implement a dummy service like so:

public class MediaService : IMediaService
{
    public async Task<Stream> GetSong(int songNumber)
    {
        // Simulate latency
        await Task.Delay(TimeSpan.FromSeconds(5));
        // Return dummy stream of music
        return new MemoryStream([1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15]);
    }
}

We then need something to actually play the song.

This is it’s contract:

public interface IMediaPlayer
{
    void Play(Stream song);
    void Pause();
}

And this is it’s implementation:

public class MediaPlayer : IMediaPlayer
{
    public void Play(Stream song)
    {
        // Play the song
        Log.Information("Playing the song");
    }

    public void Pause()
    {
        // Pause the song
        Log.Information("Pausing the song");
    }
}

Finally, our Jukebox class:

public sealed class Jukebox
{
    public Status CurrentStatus => _stateMachine.State;

    // State machine
    private readonly StateMachine<Status, Trigger> _stateMachine;

    public Jukebox(IMediaService service)
    {
        _stateMachine = new StateMachine<Status, Trigger>(Status.Ready);
        var mediaPlayer = new MediaPlayer();

        //
        // Configure state machine
        //
        _stateMachine.Configure(Status.Ready)
            .Permit(Trigger.Play, Status.Playing);

        _stateMachine.Configure(Status.Playing)
            .Permit(Trigger.Stop, Status.Ready)
            .Permit(Trigger.Pause, Status.Paused);

        _stateMachine.Configure(Status.Paused)
            .Permit(Trigger.Play, Status.Playing)
            .Permit(Trigger.Stop, Status.Ready);
    }

    public void Play()
    {
        _stateMachine.Fire(Trigger.Play);
    }

    public void Pause()
    {
        _stateMachine.Fire(Trigger.Pause);
    }

    public void Stop()
    {
        _stateMachine.Fire(Trigger.Stop);
    }
}

We then write some tests to make sure everything works correctly.

[Fact]
public void Jukebox_Initializes_To_Ready()
{
    var service = new MediaService();
    var jb = new Jukebox(service);
    jb.CurrentStatus.Should().Be(Status.Ready);
}

[Fact]
public void Jukebox_Transitions_To_Playing_After_Ready_When_Played()
{
    var service = new MediaService();
    var jb = new Jukebox(service);
    jb.Play();
    jb.CurrentStatus.Should().Be(Status.Playing);
}

[Fact]
public void Jukebox_Transitions_To_Paused_After_Playing_When_Paused()
{
    var service = new MediaService();
    var jb = new Jukebox(service);
    jb.Play();
    jb.Pause();
    jb.CurrentStatus.Should().Be(Status.Paused);
}

[Fact]
public void Jukebox_Transitions_To_Ready_After_Playing_When_Stopped()
{
    var service = new MediaService();
    var jb = new Jukebox(service);
    jb.Play();
    jb.Stop();
    jb.CurrentStatus.Should().Be(Status.Ready);
}

[Fact]
public void Jukebox_Transitions_To_Ready_After_Paused_When_Stopped()
{
    var service = new MediaService();
    var jb = new Jukebox(service);
    jb.Play();
    jb.Pause();
    jb.Stop();
    jb.CurrentStatus.Should().Be(Status.Ready);
}

[Fact]
public void Jukebox_Does_Not_Transition_When_Stopped_After_Initialization()
{
    var service = new MediaService();
    var jb = new Jukebox(service);
    var ex = Record.Exception(() => jb.Stop());
    ex.Should().BeOfType<InvalidOperationException>();
}

Now we are ready to wire in our logic.

When we transition to play, we retrieve a stream of our song from the media service.

A good place to put this logic is the OnEntry() method.

_stateMachine.Configure(Status.Playing)
          .Permit(Trigger.Stop, Status.Ready)
          .Permit(Trigger.Pause, Status.Paused)
          .OnEntry(() =>
          {
              // Retrieve our music here
          });

Let us proceed to do just that:

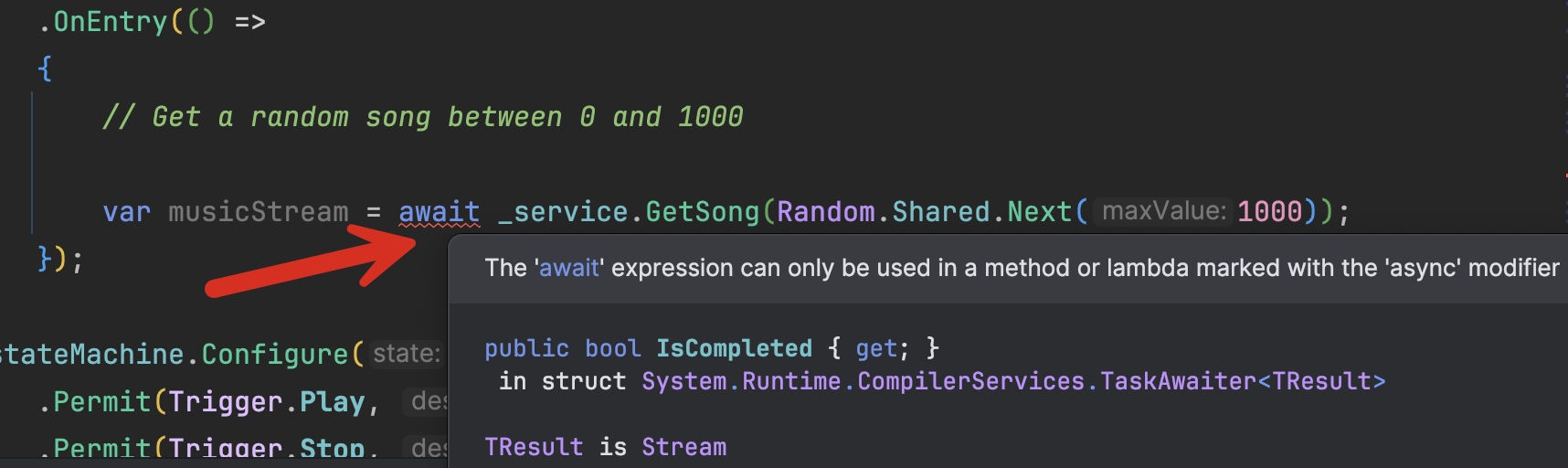

StateMachineAsyncError

The IDE is complaining that we are invoking an async method within a method that isn’t.

We can force it by immediately retrieving the Result:

.OnEntry(() =>
{
    // Get a random song between 0 and 1000

    var musicStream = _service.GetSong(Random.Shared.Next(1000)).Result;
});

But forcing sync behaviour from async code is not a good practice.

Luckily, Stateless has solved this problem in a very elegant way.

All the methods we have talked about in this series have async counterparts.

The solution is, therefore, to use the OnEntryAsync() method.

_stateMachine.Configure(Status.Playing)
  .Permit(Trigger.Stop, Status.Ready)
  .Permit(Trigger.Pause, Status.Paused)
  .OnEntryAsync(async () =>
  {
      // Get a random song between 0 and 1000
      var musicStream = await service.GetSong(Random.Shared.Next(1000));
  });

Unfortunately, we are not done yet.

Once you make any code in your system asynchronous, it propagates all the way up the chain.

We now have to use FireAsync() to trigger, rather than just Fire().

We also have to make the methods that call the trigger async too.

Our jukebox now looks like this:

public sealed class Jukebox
{
    public Status CurrentStatus => _stateMachine.State;

    // State machine
    private readonly StateMachine<Status, Trigger> _stateMachine;

    public Jukebox(IMediaService service)
    {
        _stateMachine = new StateMachine<Status, Trigger>(Status.Ready);
        var mediaPlayer = new MediaPlayer();

        //
        // Configure state machine
        //
        _stateMachine.Configure(Status.Ready)
            .Permit(Trigger.Play, Status.Playing)
            .Permit(Trigger.Pause, Status.Paused);

        _stateMachine.Configure(Status.Playing)
            .Permit(Trigger.Stop, Status.Ready)
            .Permit(Trigger.Pause, Status.Paused)
            .OnEntryAsync(async () =>
            {
                // Get a random song between 0 and 1000
                var musicStream = await service.GetSong(Random.Shared.Next(1000));
                // Play the music
                mediaPlayer.Play(musicStream);
            });

        _stateMachine.Configure(Status.Paused)
            .Permit(Trigger.Play, Status.Playing)
            .Permit(Trigger.Stop, Status.Ready)
            .OnEntry(() =>
            {
                // Pause the music
                mediaPlayer.Pause();
            });
    }

    public async Task Play()
    {
        await _stateMachine.FireAsync(Trigger.Play);
    }

    public void Pause()
    {
        _stateMachine.Fire(Trigger.Pause);
    }

    public void Stop()
    {
        _stateMachine.Fire(Trigger.Stop);
    }
}

The final state diagram for the Jukebox is as follows:

JukebosState

TLDR

Stateless has async methods that can be used when your state transitions require async logic.

The code is in my GitHub.

Happy hacking!
