This is Part 16 of a series on Designing, Building & Packaging A Scalable, Testable .NET Open Source Component.

Our last post looked at organizing tests.

This post we shall turn our attention to an issue we have kept under the carpet - dealing with large files.

Currently, our (passing) tests work with relatively small files.

private static MemoryStream GetFile()
{
  var faker = new Faker();
  var dataToStore = faker.Lorem.Sentences(20);
  var dataToStoreStream = new MemoryStream(Encoding.UTF8.GetBytes(dataToStore));
  return dataToStoreStream;
}

This is about 1,000 bytes (between 800 and 1100).

At which point we must ask ourselves - what constitutes a large file?

For purposes of our component, a large file is one that is greater than 5 MB.

Let us go on to further set an upper limit for our files. Let us use 1 GB - perhaps someone is uploading a DVD image, or a dump of some sort.

This present some challenges on our database code, specifically storage and retrieval.

Let us examine the impact on each of our storage engines.

SQL Server Storage

The persistence code currently looks like this:

// Create and initialize command
var param = new DynamicParameters();
param.Add("FileID", metaData.FileId, DbType.Guid);
param.Add("Name", metaData.Name, DbType.String, size: 500);
param.Add("Extension", metaData.Extension, DbType.String, size: 10);
param.Add("DateUploaded", metaData.DateUploaded, DbType.DateTime2);
param.Add("OriginalSize", metaData.OriginalSize, DbType.Int32);
param.Add("PersistedSize", metaData.PersistedSize, DbType.Int32);
param.Add("CompressionAlgorithm", metaData.CompressionAlgorithm, DbType.Byte);
param.Add("EncryptionAlgorithm", metaData.EncryptionAlgorithm, DbType.Byte);
param.Add("Hash", metaData.Hash, dbType: DbType.Binary, size: 32);
param.Add("Data", data, DbType.Binary, size: -1);
var command = new CommandDefinition(sql, param, cancellationToken: cancellationToken);
await using (var cn = new SqlConnection(_connectionString))
{
    await cn.ExecuteAsync(command);
}

This works perfectly with small streams. If, however, we submitted a very large stream, Dapper would present a slight challenge. Currently, it does not deal with streams - it converts everything to a byte array once and then puts that into the database.

We want the code to use the stream, so that the data can be written in chunks.

To do this, we need to the following:

  1. Update our code to use the underlying SQL Server ADO.NET provider.
  2. Allow a timeout to be passed (when the file is large and the connection is slow)

We start by updating our IStorageEngine interface to add a property to store the Timeout, as we do not want to hard code this, or make it a constant.:

public interface IStorageEngine
{
  /// <summary>
  /// How long to wait before a timeout (in minutes)
  /// </summary>
  int TimeoutInMinutes { get; }

  //
  // Snip the rest
  //
}

Next we update our IStorageEngine implementations.

For the InMemoryStorage engine, the concept of a timeout is irrelevant, so we simply return a 0.

public class InMemoryStorageEngine : IStorageEngine
{
    // In-memory store for files and metadata
    private readonly ConcurrentDictionary<Guid, (FileMetadata MetaData, MemoryStream Stream)> _files;

    /// <inheritdoc />
    public int TimeoutInMinutes => 0;

    //
    // Snip the rest
    //
}

For the SQLServerStorageEngine, we pass the timeout in the constructor

public sealed class SqlServerStorageEngine : IStorageEngine
{
    /// <inheritdoc />
    public int TimeoutInMinutes { get; }

    private readonly string _connectionString;

    /// <summary>
    /// Constructor, taking the connection string
    /// </summary>
    /// <param name="connectionString"></param>
    /// <param name="timeoutInMinutes"></param>
    public SqlServerStorageEngine(string connectionString, int timeoutInMinutes)
    {
        TimeoutInMinutes = timeoutInMinutes;
        _connectionString = connectionString;
        // Parse the connection string
        var parser = new SqlServerConnectionStringParser(connectionString);
        if (string.IsNullOrEmpty(parser.Database))
            throw new ArgumentException($"{nameof(parser.Database)} cannot be null or empty");
    }

  	//
  	// Snip the rest
  	//
}

Then the code for the StoreFileAsync:

public async Task<FileMetadata> StoreFileAsync(FileMetadata metaData, Stream data,
CancellationToken cancellationToken = default)
{
  // Query to fetch file metadata
  const string sql = """
                     INSERT INTO Files (
                                FileID, Name, Extension, DateUploaded,
                                OriginalSize, PersistedSize, CompressionAlgorithm,
                                EncryptionAlgorithm, Hash, Data
                            ) VALUES (
                                @FileID, @Name, @Extension, @DateUploaded,
                                @OriginalSize, @PersistedSize, @CompressionAlgorithm,
                                @EncryptionAlgorithm, @Hash, @Data
                            )
                     """;
  data.Position = 0;

  // Set up command
  await using var cn = new SqlConnection(_connectionString);
  await cn.OpenAsync(cancellationToken);

  await using var cmd = new SqlCommand(sql, cn);
  cmd.CommandTimeout = (int)TimeSpan.FromMinutes(TimeoutInMinutes).TotalSeconds;

  cmd.Parameters.Add(new SqlParameter("@FileID", SqlDbType.UniqueIdentifier) { Value = metaData.FileId });
  cmd.Parameters.Add(new SqlParameter("@Name", SqlDbType.NVarChar, 500) { Value = metaData.Name });
  cmd.Parameters.Add(new SqlParameter("@Extension", SqlDbType.NVarChar, 10) { Value = metaData.Extension });
  cmd.Parameters.Add(
      new SqlParameter("@DateUploaded", SqlDbType.DateTimeOffset) { Value = metaData.DateUploaded });
  cmd.Parameters.Add(new SqlParameter("@OriginalSize", SqlDbType.Int) { Value = metaData.OriginalSize });
  cmd.Parameters.Add(new SqlParameter("@PersistedSize", SqlDbType.Int) { Value = metaData.PersistedSize });
  cmd.Parameters.Add(new SqlParameter("@CompressionAlgorithm", SqlDbType.TinyInt)
      { Value = metaData.CompressionAlgorithm });
  cmd.Parameters.Add(new SqlParameter("@EncryptionAlgorithm", SqlDbType.TinyInt)
      { Value = metaData.EncryptionAlgorithm });
  cmd.Parameters.Add(new SqlParameter("@Hash", SqlDbType.Binary, 32) { Value = metaData.Hash });

  var dataParam = new SqlParameter("@Data", SqlDbType.VarBinary, -1)
  {
      Value = data,
      Direction = ParameterDirection.Input
  };
  cmd.Parameters.Add(dataParam);

  // Execute
  await cmd.ExecuteNonQueryAsync(cancellationToken);

  return metaData;
}

Finally, the code for the GetFileAsync that we also rewrite to allow for streaming.

/// <inheritdoc />
public async Task<Stream> GetFileAsync(Guid fileId, CancellationToken cancellationToken = default)
{
    const string sql = "SELECT Data FROM Files WHERE FileId = @FileId";

    await using (var cn = new SqlConnection(_connectionString))
    {
        await cn.OpenAsync(cancellationToken);

        await using (var cmd = new SqlCommand(sql, cn))
        {
            // Increase the timout in case of large files
            cmd.CommandTimeout = (int)TimeSpan.FromMinutes(TimeoutInMinutes).TotalSeconds;
            cmd.Parameters.AddWithValue("@FileId", fileId);

            await using (var reader =
                         await cmd.ExecuteReaderAsync(CommandBehavior.SequentialAccess, cancellationToken))
            {
                if (await reader.ReadAsync(cancellationToken))
                {
                    var memoryStream = new MemoryStream();

                    await using (var dataStream = reader.GetStream(0))
                        await dataStream.CopyToAsync(memoryStream, Constants.DefaultBufferSize, cancellationToken);

                    memoryStream.Position = 0;

                    return memoryStream;
                }
            }
        }
    }

    throw new FileNotFoundException($"The file '{fileId}' was not found");
}

To make sure everything is working, we add some test cases for large file support:

[Theory]
[InlineData(16)]
[InlineData(32)]
[InlineData(64)]
[InlineData(128)]
[InlineData(256)]
[InlineData(512)]
[InlineData(1_024)]
public async Task Large_File_Upload_And_Download_Succeeds(int size)
{
    // Compute the file size in bytes
    var fileSizeInBytes = 1L * size * 1_024 * 1_024;
    // Create a buffer
    const int bufferSize = 1024 * 1024;

    byte[] buffer = new byte[bufferSize];
    new Random().NextBytes(buffer);

    // Write to a temporary file
    var filePath = Path.GetTempFileName();
    await using (FileStream fs = new FileStream(filePath, FileMode.Create, FileAccess.Write, FileShare.None))
    {
        long bytesWritten = 0;
        while (bytesWritten < fileSizeInBytes)
        {
            long bytesToWrite = Math.Min(bufferSize, fileSizeInBytes - bytesWritten);
            await fs.WriteAsync(buffer.AsMemory(0, (int)bytesToWrite));
            bytesWritten += bytesToWrite;
        }
    }

    // Read the file
    await using (var input = File.OpenRead(filePath))
    {
        // Upload the file
        var uploadMetadata = await Upload(input);
        // Download the file
        await using (var download = await _manager.DownloadFileAsync(uploadMetadata.FileId))
        {
            download.Position = 0;
            // Get the Hash
            var sha = SHA256.Create();
            var currentHash = await sha.ComputeHashAsync(download);
            currentHash.Should().BeEquivalentTo(uploadMetadata.Hash);
        }
    }

    File.Delete(filePath);
}

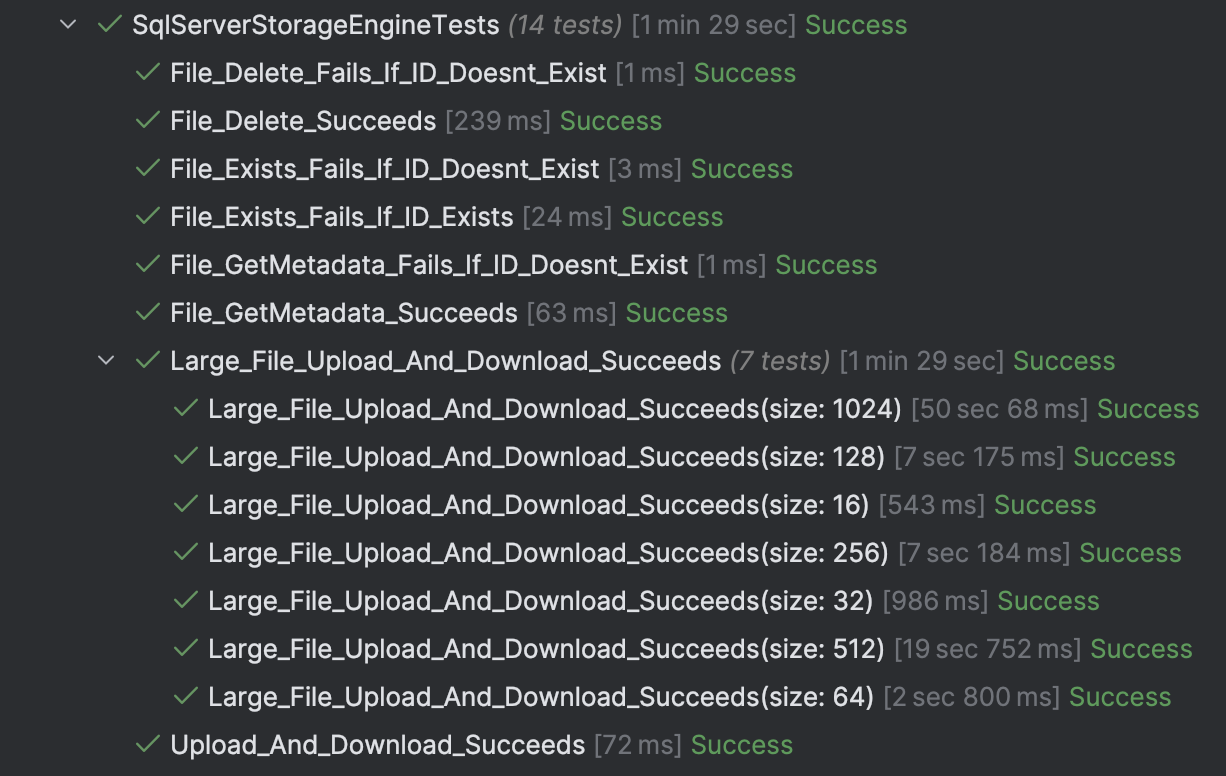

Here we are testing for 16 MB, 32 MB, 64 MB, 128 MB, 256 MB, 512 MB, and 1 GB

[Theory]
[InlineData(16)]
[InlineData(32)]
[InlineData(64)]
[InlineData(128)]
[InlineData(256)]
[InlineData(512)]
[InlineData(1_024)]
public async Task Large_File_Upload_And_Download_Succeeds(int size)
{
    // Compute the file size in bytes
    var fileSizeInBytes = 1L * size * 1_024 * 1_024;
    // Create a buffer
    const int bufferSize = 1024 * 1024;

    byte[] buffer = new byte[bufferSize];
    new Random().NextBytes(buffer);

    // Write to a temporary file
    var filePath = Path.GetTempFileName();
    await using (FileStream fs = new FileStream(filePath, FileMode.Create, FileAccess.Write, FileShare.None))
    {
        long bytesWritten = 0;
        while (bytesWritten < fileSizeInBytes)
        {
            long bytesToWrite = Math.Min(bufferSize, fileSizeInBytes - bytesWritten);
            await fs.WriteAsync(buffer.AsMemory(0, (int)bytesToWrite));
            bytesWritten += bytesToWrite;
        }
    }

    // Read the file
    await using (var input = File.OpenRead(filePath))
    {
        // Upload the file
        var uploadMetadata = await Upload(input);
        // Download the file
        await using (var download = await _manager.DownloadFileAsync(uploadMetadata.FileId))
        {
            download.Position = 0;
            // Get the Hash
            var sha = SHA256.Create();
            var currentHash = await sha.ComputeHashAsync(download);
            currentHash.Should().BeEquivalentTo(uploadMetadata.Hash);
        }
    }

    File.Delete(filePath);
}

PostgreSQL

Similarly, we can make the same changes for our PostgreSQL

Inject the timeout in the constructor:

public sealed class PosgrgreSQLStorageEngine : IStorageEngine
{
    /// <inheritdoc/>
    public int TimeoutInMinutes { get; }

    private readonly string _connectionString;

    /// <summary>
    /// Constructor, taking the connection string
    /// </summary>
    /// <param name="connectionString"></param>
    /// <param name="timeoutInMinutes"></param>
    public PosgrgreSQLStorageEngine(string connectionString, int timeoutInMinutes)
    {
        TimeoutInMinutes = timeoutInMinutes;
        _connectionString = connectionString;
        // Parse the connection string for a database
        var parser = new PostgreSQLConnectionStringParser(connectionString);
        if (string.IsNullOrEmpty(parser.Database))
            throw new ArgumentException($"{nameof(parser.Database)} cannot be null or empty");
    }
    //
    // Snip the rest
    //
}

Update the StoreFileAsync

 /// <inheritdoc />
public async Task<FileMetadata> StoreFileAsync(FileMetadata metaData, Stream data,
    CancellationToken cancellationToken = default)
{
    // Query to fetch file metadata
    const string sql = """
                       INSERT INTO Files (
                                  FileID, Name, Extension, DateUploaded,
                                  OriginalSize, PersistedSize, CompressionAlgorithm,
                                  EncryptionAlgorithm, Hash, Data
                              ) VALUES (
                                  @FileID, @Name, @Extension, @DateUploaded,
                                  @OriginalSize, @PersistedSize, @CompressionAlgorithm,
                                  @EncryptionAlgorithm, @Hash, @Data
                              )
                       """;
    await using var cn = new NpgsqlConnection(_connectionString);
    await cn.OpenAsync(cancellationToken);

    await using var cmd = new NpgsqlCommand(sql, cn);
    cmd.CommandTimeout = (int)TimeSpan.FromMinutes(TimeoutInMinutes).TotalSeconds;

    // Add normal parameters
    cmd.Parameters.AddWithValue("@FileId", NpgsqlDbType.Uuid, metaData.FileId);
    cmd.Parameters.AddWithValue("@Name", NpgsqlDbType.Varchar, metaData.Name);
    cmd.Parameters.AddWithValue("@Extension", NpgsqlDbType.Varchar, metaData.Extension);
    cmd.Parameters.AddWithValue("@DateUploaded", NpgsqlDbType.TimestampTz, metaData.DateUploaded);
    cmd.Parameters.AddWithValue("@OriginalSize", NpgsqlDbType.Integer, metaData.OriginalSize);
    cmd.Parameters.AddWithValue("@PersistedSize", NpgsqlDbType.Integer, metaData.PersistedSize);
    cmd.Parameters.AddWithValue("@CompressionAlgorithm", NpgsqlDbType.Smallint,
        (byte)metaData.CompressionAlgorithm);
    cmd.Parameters.AddWithValue("@EncryptionAlgorithm", NpgsqlDbType.Smallint,
        (byte)metaData.EncryptionAlgorithm);
    cmd.Parameters.AddWithValue("@Hash", NpgsqlDbType.Bytea, metaData.Hash);

    // Stream parameter
    data.Position = 0;
    var dataParam = new NpgsqlParameter("Data", NpgsqlDbType.Bytea)
    {
        Value = data,
        Size = -1
    };
    cmd.Parameters.Add(dataParam);

    await cmd.ExecuteNonQueryAsync(cancellationToken);

    return metaData;
}

Finally, the code for GetFileAsync

/// <inheritdoc />
public async Task<Stream> GetFileAsync(Guid fileId, CancellationToken cancellationToken = default)
{
  // Query to fetch file
  const string sql = "SELECT Data FROM Files where FileId = @FileId";

  await using (var cn = new NpgsqlConnection(_connectionString))
  {
      await cn.OpenAsync(cancellationToken);

      await using (var cmd = new NpgsqlCommand(sql, cn))
      {
          // Increase the timout in case of large files
          cmd.CommandTimeout = (int)TimeSpan.FromMinutes(5).TotalSeconds;
          cmd.Parameters.AddWithValue("FileID", fileId);

          await using (var reader =
                       await cmd.ExecuteReaderAsync(CommandBehavior.SequentialAccess, cancellationToken))
          {
              if (await reader.ReadAsync(cancellationToken))
              {
                  var memoryStream = new MemoryStream();
                  await using (var dataStream =
                               await reader.GetStreamAsync(0, cancellationToken).ConfigureAwait(false))
                      await dataStream.CopyToAsync(memoryStream, Constants.DefaultBufferSize, cancellationToken);

                  memoryStream.Position = 0;

                  return memoryStream;
              }
          }
      }
  }

  throw new FileNotFoundException($"The file '{fileId}' was not found");
}

To make sure all this is working, we also test for files from 16MB to 1GB.

[Theory]
[InlineData(16)]
[InlineData(32)]
[InlineData(64)]
[InlineData(128)]
[InlineData(256)]
[InlineData(512)]
[InlineData(1_024)]
public async Task Large_File_Upload_And_Download_Succeeds(int size)
{
    // Compute the file size in bytes
    var fileSizeInBytes = 1L * size * 1_024 * 1_024;
    // Create a buffer
    const int bufferSize = 1024 * 1024;

    byte[] buffer = new byte[bufferSize];
    new Random().NextBytes(buffer);

    // Write to a temporary file
    var filePath = Path.GetTempFileName();
    await using (FileStream fs = new FileStream(filePath, FileMode.Create, FileAccess.Write, FileShare.None))
    {
        long bytesWritten = 0;
        while (bytesWritten < fileSizeInBytes)
        {
            long bytesToWrite = Math.Min(bufferSize, fileSizeInBytes - bytesWritten);
            await fs.WriteAsync(buffer.AsMemory(0, (int)bytesToWrite));
            bytesWritten += bytesToWrite;
        }
    }

    // Read the file
    await using (var input = File.OpenRead(filePath))
    {
        // Upload the file
        var uploadMetadata = await Upload(input);
        // Download the file
        await using (var download = await _manager.DownloadFileAsync(uploadMetadata.FileId))
        {
            download.Position = 0;
            // Get the Hash
            var sha = SHA256.Create();
            var currentHash = await sha.ComputeHashAsync(download);
            currentHash.Should().BeEquivalentTo(uploadMetadata.Hash);
        }
    }

    File.Delete(filePath);
}

Let us now run our tests:

For SQL Server, all is well:

SQLServerAllFilesTest

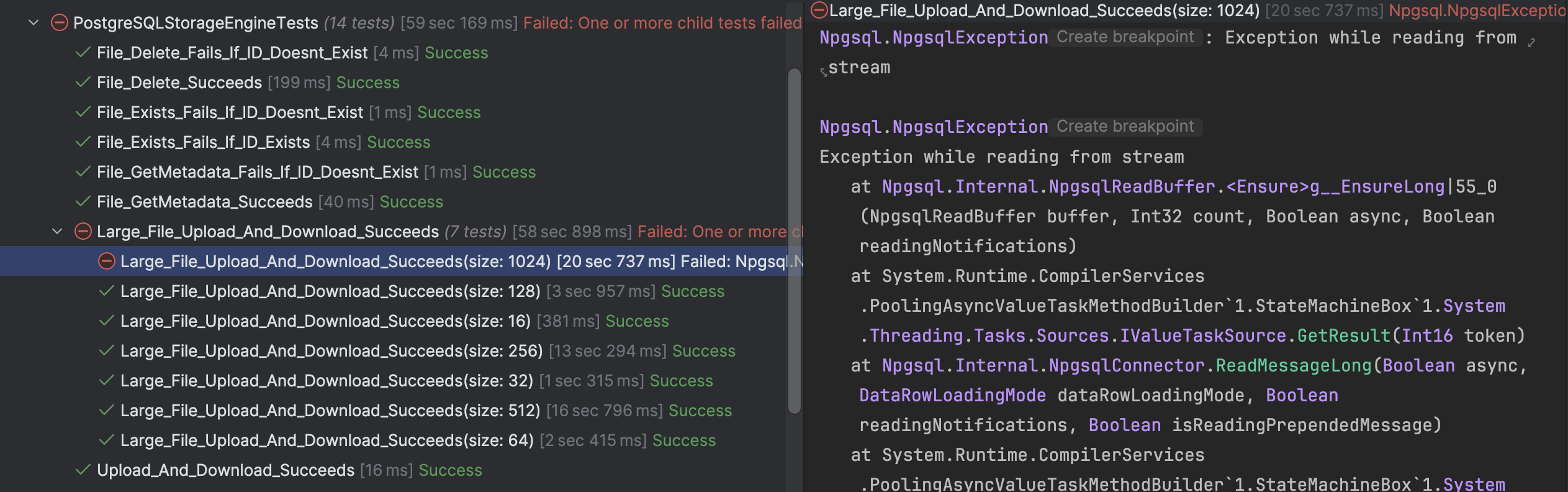

For PostgreSQL, however, the 1GB file failed

PostgreSQLAllFilesTest

In our next post, we will look at how to tackle this.

TLDR

In this post, we improved our SQLServerStorageEngine and our PostgreSQLStorageEngine to support persistence of large files, and tests to verify functionality.

The code is in my GitHub.

Happy hacking!
