This is Part 4 of a series on Designing, Building & Packaging A Scalable, Testable .NET Open Source Component.

In our last post, we set up our project structures.

In this post, we shall start implementing some types and contracts.

The requirements for the file metadata were as follows:

This metadata will include:

  1. File name
  2. File size (in bytes)
  3. Extension (Will need this to know how to render the file if being viewed by the browser)
  4. Date Uploaded
  5. File Hash (Hash to detect changes to the file (for whatever reason). Also to tell if this file has been uploaded before)

Given we are also adding support for encryption and compression, we will need to store those with the metadata.

Let us add the two enums, starting with the EncryptionAlgorithm:

namespace UploadFileManager;
/// <summary>
/// Algorithm to use for encryption
/// </summary>
public enum EncryptionAlgorithm
{
    /// <summary>
    /// No encryption
    /// </summary>
    None = 0,
    /// <summary>
    ///  AES encryption
    /// </summary>
    Aes = 1,
}

Then the CompressionAlgorithm:

namespace UploadFileManager;
/// <summary>
/// Algorithm to use for compressopm
/// </summary>
public enum CompressionAlgorithm
{
    /// <summary>
    /// No compression
    /// </summary>
    None = 0,
    /// <summary>
    /// ZIP compression
    /// </summary>
    Zip = 1
}

Next we define the FileMetadata

namespace UploadFileManager;

/// <summary>
/// Metadata of store files
/// </summary>
public sealed record FileMetadata
{
    /// <summary>
    /// File identifier
    /// </summary>
    public required Guid FileId { get; init; }

    /// <summary>
    /// Full file name
    /// </summary>
    public required string Name { get; init; }

    /// <summary>
    /// File extension
    /// </summary>
    public required string Extension { get; init; }

    /// <summary>
    ///  Date and time of storage
    /// </summary>
    public required DateTime DateUploaded { get; init; }

    /// <summary>
    /// Original file size
    /// </summary>
    public required int OriginalSize { get; init; }

    /// <summary>
    /// Compressed file size
    /// </summary>
    public required int CompressedSize { get; init; }

    /// <summary>
    /// Compression algorithm used to compress file
    /// </summary>
    public required CompressionAlgorithm CompressionAlgorithm { get; init; }

    /// <summary>
    /// Encryption algorithm used to encrypt file
    /// </summary>
    public required EncryptionAlgorithm EncryptionAlgorithm { get; init; }

    /// <summary>
    /// SHA256 hash of the file
    /// </summary>
    public required byte[] Hash { get; set; }
}

Now, let us turn our attention to the contract for the component.

A couple of things to consider:

  1. Given this is a file manager, the core functionality will essentially be I/O operations
  2. For (potentially) I/O heavy operations, we should probably implement the methods asychronously
  3. Async methods generally support cancellation tokens. So should our component, where applicable.
  4. This component should be thread-safe, so we should avoid as much as possible any shared state
  5. Given files could potentially be very large, it might be best to use Streams rather than byte arrays to access the file data.
  6. Probably also a good idea to add a method to check if a FileID exists

The first implementation looks like this:

public interface IFileManager
{
    Task<FileMetadata> StoreFileAsync(string fileName, string extension, Stream data,
        CancellationToken cancellationToken = default);
    Task<FileMetadata> GetMetadataAsync(Guid fileId, CancellationToken cancellationToken = default);
    Task<Stream> GetFileAsync(Guid fileId, CancellationToken cancellationToken = default);
    Task<Stream> DeleteFileAsync(Guid fileId, CancellationToken cancellationToken = default);
    Task<bool> FileExistsAsync(Guid fileId, CancellationToken cancellationToken = default);
}

But in the spec we have said we will compress and encrypt the file. This means that the StoreFileAsync will be doing other things within to support this functionality, and so will the GetFileAsync. We need to separate concerns so that each service does one thing. That makes maintenance and improvement easier.

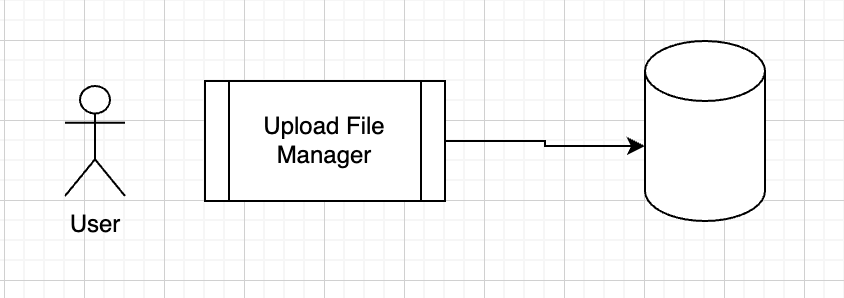

InitialDesign

We can redesign this as follows:

  1. The “Manager” will be a service that hosts a number of injectable services
  2. The first will compress the data
  3. The second will encrypt the data
  4. The third will persist the data

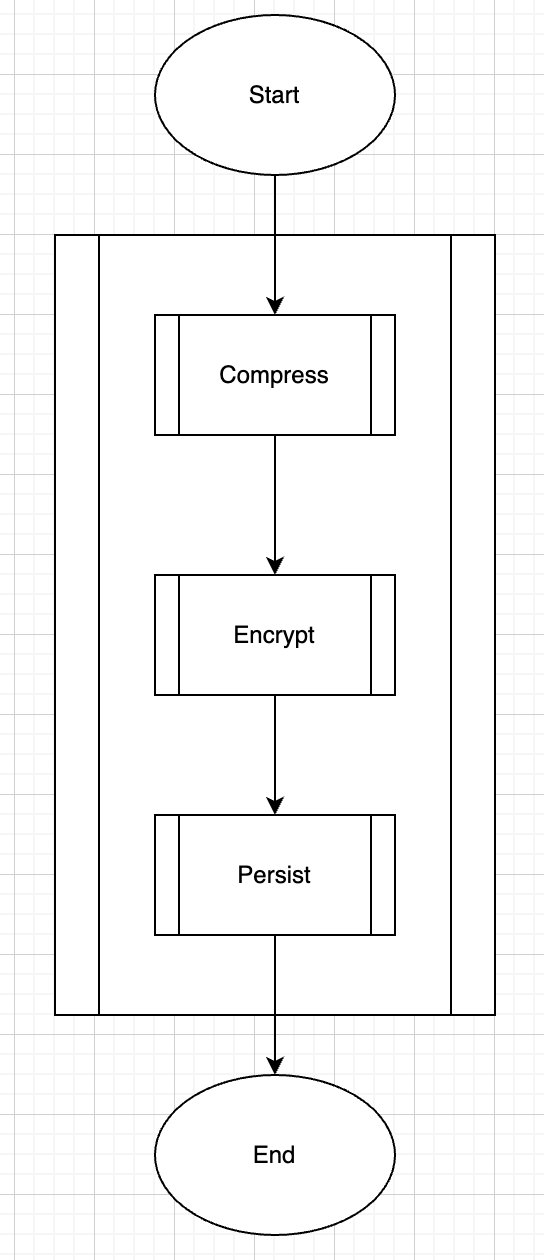

Thus, there is a pipeline that will process the incoming data.

The order of the pipeline matters - if we encrypt first, we will get poor compression.

The component internally will look like this:

Pipeline

Let us define the following contracts:

  • IFileCompressor
  • IFileEncryptor
  • IFilePersister

The IFileCompressor will look like this:

namespace UploadFileManager;

/// <summary>
/// File compression & decompression contract
/// </summary>
public interface IFileCompressor
{
    /// <summary>
    /// Compression algorithm to use
    /// </summary>
    public CompressionAlgorithm CompressionAlgorithm { get; }

    /// <summary>
    /// Compress stream
    /// </summary>
    /// <param name="data"></param>
    /// <returns></returns>
    public Stream Compress(Stream data);

    /// <summary>
    /// De-compress the stream
    /// </summary>
    /// <param name="data"></param>
    /// <returns></returns>
    public Stream DeCompress(Stream data);
}

The IFileEncryptor will look like this:

namespace UploadFileManager;

/// <summary>
/// File encryption & decryption contract
/// </summary>
public interface IFileEncryptor
{
    /// <summary>
    /// Compression algorithm to use
    /// </summary>
    EncryptionAlgorithm EncryptionAlgorithm { get; }

    /// <summary>
    /// Encrypt the stream
    /// </summary>
    /// <param name="data"></param>
    /// <returns></returns>
    public Stream Encrypt(Stream data);

    /// <summary>
    /// Decrypt the stream
    /// </summary>
    /// <param name="data"></param>
    /// <returns></returns>
    public Stream Decrypt(Stream data);
}

The IFilePersistor will closely mirror the original API surface:

public interface IFilePersistor
{
    Task<FileMetadata> StoreFileAsync(string fileName, string extension, Stream data,
        CancellationToken cancellationToken = default);

    Task<FileMetadata> GetMetadataAsync(Guid fileId, CancellationToken cancellationToken = default);
    Task<Stream> GetFileAsync(Guid fileId, CancellationToken cancellationToken = default);
    Task<Stream> DeleteFilesAsync(Guid fileId, CancellationToken cancellationToken = default);
    Task<bool> FileExistsAsync(Guid fileId, CancellationToken cancellationToken = default);
}

To avoid confusion, we will sligtly refactor the method names from the original IFileManager

namespace UploadFileManager;

public interface IFileManager
{
    Task<FileMetadata> UploadFileAsync(string fileName, string extension, Stream data,
        CancellationToken cancellationToken = default);

    Task<FileMetadata> FetchMetadataAsync(Guid fileId, CancellationToken cancellationToken = default);
    Task<Stream> DownloadFileAsync(Guid fileId, CancellationToken cancellationToken = default);
    Task<Stream> DeleteFileAsync(Guid fileId, CancellationToken cancellationToken = default);
    Task<bool> FileExistsAsync(Guid fileId, CancellationToken cancellationToken = default);
}

We have defined here that the IFileManager will require the three services we have just designed to be stitched together to carry out the required work.

In our next post, we will tie the types we have implemented together and write tests to validate our assumptions and functionality.

TLDR

This post creates preliminary versions of some of the types and contracts we will use.

The code is in my GitHub.

Happy hacking!
