This is Part 7 of a series on Designing, Building & Packaging A Scalable, Testable .NET Open Source Component.

Our last post explored how to write behaviour tests via mocking using Moq.

This post will look at additional improvements to verify that our component behaves correctly.

In our code, the following takes place:

  1. Compression
  2. Encryption
  3. Storage

These have to take place in the correct order. How do we verify the correct order?

As a reminder, the signatures are as follows:

// Compress the data
var compressed = _fileCompressor.Compress(data);
// Encrypt the data
var encrypted = _fileEncryptor.Encrypt(compressed);
//
// Snipped out code
//
// Persist the file data
await _filePersistor.StoreFileAsync(fileName, extension, encrypted, cancellationToken);
        return metadata;

One way would be to assert that the specific arguments were called, given that we have set them up.

// Check that the compressor's Compress method was called once
compressor.Verify(x => x.Compress(new MemoryStream(originalBytes)), Times.Once);
// Check that the encryptor's Encrypt method was called once
encryptor.Verify(x => x.Encrypt(new MemoryStream(compressedBytes)), Times.Once);
// Check that the persistor's StoreFileAsync method was called once
persistor.Verify(
    x => x.StoreFileAsync(fileName, extension, new MemoryStream(encryptedBytes),
        CancellationToken.None),
    Times.Once);

This, however, does not work as a Stream is a reference type, and therefore the Moq engine cannot determine equality out of the box without some extra work.

Luckily, a better solution exists: Moq supports a construct - the MockSequence. This can be used to set up the order in which methods are expected to be called.

This is implemented as follows:

// Create a sequence to track invocation order
var sequence = new MockSequence();

// Configure the behaviour for methods called and properties, specifying the sequence
compressor.InSequence(sequence).Setup(x => x.Compress(It.IsAny<Stream>()))
    .Returns(new MemoryStream(compressedBytes));
compressor.Setup(x => x.CompressionAlgorithm)
    .Returns(CompressionAlgorithm.Zip);

encryptor.InSequence(sequence).Setup(x => x.Encrypt(It.IsAny<Stream>()))
    .Returns(new MemoryStream(encryptedBytes));
encryptor.Setup(x => x.EncryptionAlgorithm)
    .Returns(EncryptionAlgorithm.Aes);

persistor.InSequence(sequence).Setup(x =>
        x.StoreFileAsync(It.IsAny<string>(), It.IsAny<string>(), It.IsAny<Stream>(),
            CancellationToken.None))
    .ReturnsAsync(metaData)

Note that I have reorderd the setup to conform to the sequence, as now it matters.

The magic is taking place in this call:

Service.InSequence(sequence).Setup

Each time we pass in the sequence object, the mock is instructed on the expected order.

If we run our code now, our tests will pass.

To verify that the order is enforced, try modifying this code in the UploadFileManager to swap the order.

// Compress the data
var compressed = _fileCompressor.Compress(data);
// Encrypt the data
var encrypted = _fileEncryptor.Encrypt(compressed);
//
// Snipped out code
//
// Persist the file data
      await _filePersistor.StoreFileAsync(fileName, extension, encrypted, cancellationToken);
      return metadata;

To look like this;

// Encrypt the data
var encrypted = _fileEncryptor.Encrypt(compressed);
// Compress
var compressed = _fileCompressor.Compress(data);
//
// Snipped out code
//
// Persist the file data
      await _filePersistor.StoreFileAsync(fileName, extension, compressed, cancellationToken);
      return metadata;

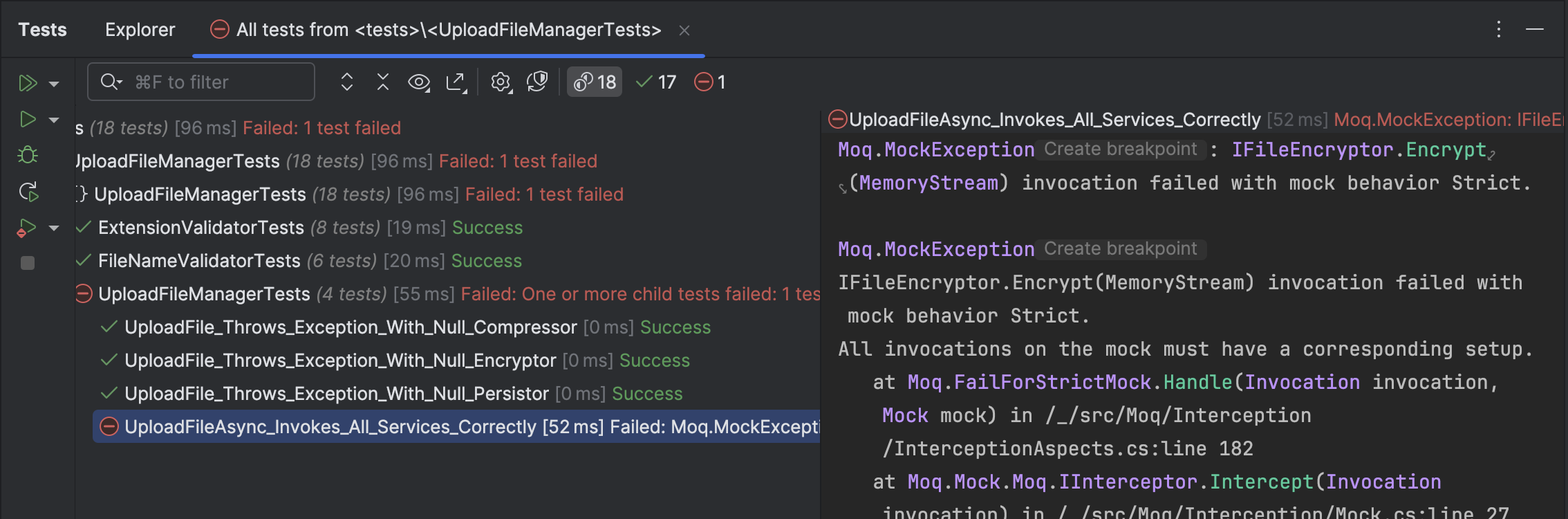

Upon running, the test now fails.

OrderFail

The error message, though, is not very helpful for troubleshooting.

Moq.MockException: IFileEncryptor.Encrypt(MemoryStream) invocation failed with mock behavior Strict.

Moq.MockException
IFileEncryptor.Encrypt(MemoryStream) invocation failed with mock behavior Strict.
All invocations on the mock must have a corresponding setup.
   at Moq.FailForStrictMock.Handle(Invocation invocation, Mock mock) in /_/src/Moq/Interception/InterceptionAspects.cs:line 182

In our next post, we will start to implement the concrete implementations of the services.

TLDR

Using the MockSequence, Moq allows us to verify the sequence in which methods are called.

The code is in my GitHub.

Happy hacking!
