This is Part 8 of a series on Designing, Building & Packaging A Scalable, Testable .NET Open Source Component.

Our last post looked at verifying the sequencing of the services we are calling to assert our expected behaviour.

This post will look at the first of the concrete implementations - the ZipCompressor.

As a reminder, this is the interface of the ICompressor

public interface IFileCompressor
{
    /// <summary>
    /// Compression algorithm to use
    /// </summary>
    public CompressionAlgorithm CompressionAlgorithm { get; }

    /// <summary>
    /// Compress stream
    /// </summary>
    /// <param name="data"></param>
    /// <returns></returns>
    public Stream Compress(Stream data);

    /// <summary>
    /// De-compress the stream
    /// </summary>
    /// <param name="data"></param>
    /// <returns></returns>
    public Stream Decompress(Stream data);

We will need to implement two methods - Compress and Decompress, as well as a read-only property, CompressionAlgorithm.

The concrete implementation of the GZipCompressor is as follows:

/// <summary>
/// Component that zips and unzips streams
/// </summary>
public sealed class GZipCompressor : IFileCompressor
{
    /// <summary>
    /// Return the compression algorithm in use - Zip
    /// </summary>
    public CompressionAlgorithm CompressionAlgorithm => CompressionAlgorithm.Zip;

    /// <inheritdoc />
    public Stream Compress(Stream data)
    {
        // Ensure the stream is positioned at start
        data.Position = 0;

        // Create a memory stream to hold the compressed data
        var compressedStream = new MemoryStream();

        // Use GZipStream to compress the data. Leave open so that
        // the downstream components can use it
        using (var gzipStream = new GZipStream(compressedStream, CompressionMode.Compress, leaveOpen: true))
        {
            // Copy the input stream into the GZip stream
            data.CopyTo(gzipStream);
        }

        // Set the position of the compressed stream to the beginning
        compressedStream.Position = 0;

        return compressedStream;
    }

    /// <inheritdoc />
    public Stream Decompress(Stream data)
    {
        // Ensure the stream is positioned at start
        data.Position = 0;

        // Create a memory stream to hold the decompressed data
        var decompressedStream = new MemoryStream();

        // Use GZipStream to decompress the data. Leave open so that
        // the downstream components can use it
        using (var gzipStream = new GZipStream(data, CompressionMode.Decompress))
        {
            // Copy the decompressed data into the memory stream
            gzipStream.CopyTo(decompressedStream);
        }

        // Set the position of the decompressed stream to the beginning
        decompressedStream.Position = 0;

        return decompressedStream;
    }
}

The next order of business is to test this.

At this point, we need to ask ourselves, what are we testing?

Two things:

  1. That the compression took place, i.e., the stream is smaller.
  2. That the compressed stream is a valid Gzip

If you are wondering why GZip and not Zip? Gzip supports compression of a single file. Zip allows compression of one or more files, plus additional options such as setting a *passwords*

The first is relatively straightforward – we can get the size of the input stream, compress it, get the size of the compressed stream, decompress it, and then validate that the final stream is the same as the original stream. It is not sufficient to check the stream size after compression - for all you know, the code might have corrupted the stream.

The following test will achieve this:

public class GZipCompressorTests
{
    private readonly GZipCompressor _gzipCompressor;

    public GZipCompressorTests()
    {
        _gzipCompressor = new GZipCompressor();
    }

    [Fact]
    public void After_Compression_Stream_Should_Be_Smaller()
    {
        // Arrange

        var faker = new Faker();
        var originalData = faker.Lorem.Sentences(10);
        var streamToCompress = new MemoryStream(Encoding.Default.GetBytes(originalData));
        var originalStreamSize = streamToCompress.Length;

        // Act

        var compressedStream = _gzipCompressor.Compress(streamToCompress);
        var compressedStreamSize = compressedStream.Length;
        var decompressedStream = _gzipCompressor.Decompress(compressedStream);

        var decompressedData = Encoding.Default.GetString(decompressedStream.GetBytes());

        // Assert

        // Check that the size is smaller, or at worst, equal
        compressedStreamSize.Should().BeLessThanOrEqualTo(originalStreamSize);
        // Check that the decompression was successful
        originalData.Should().Be(decompressedData);
        // Check the compression mode
        _gzipCompressor.CompressionAlgorithm.Should().Be(CompressionAlgorithm.Zip);
    }
}

A couple of things to note:

  1. The constructor for the test is constructing an instance of the GZipCompressor that is used throughout the tests.
  2. I am using the Bogus package to generate some random sentences (10) using the Lorem.Sentences() method in the Faker.
  3. I then use the GetBytes method of the Encoding to transform the string into an array of bytes, which I then use to construct a MemoryStream.
  4. I have created an extension method to assist with converting a MemoryStream to a byte array.
public static class StreamExtensions
{
    /// <summary>
    /// Given a stream, get a byte array
    /// </summary>
    /// <param name="stream"></param>
    /// <returns></returns>
    public static byte[] GetBytes(this Stream stream)
    {
        using (var memoryStream = new MemoryStream())
        {
            stream.CopyTo(memoryStream);
            return memoryStream.ToArray();
        }
    }
}

Next, we want to test whether the Gzip algorithm is accurate in its implementation in System compression.

The best way to do this is to get a different component to test with, and we will use DotNetZip.Original

The test will be as follows:

  1. Compress data using both our component and DotNetZip.
  2. Decompress using both our component and DotNetZip.
  3. Verify that our original data is the same for both cases.

If they are identical, then we can be (reasonably) confident that the file is being GZipped correctly.

[Fact]
public void Gzip_Compression_Implementation_Is_Valid()
{
    var faker = new Faker();
    var originalData = faker.Lorem.Sentences(10);
    var originalDataBytes = Encoding.Default.GetBytes(originalData);
    var streamToCompress = new MemoryStream(originalDataBytes);

    // Create a memory stream to hold the compressed data
    var compressedStream = new MemoryStream();

    // Use DotNetZip's GZipStream to compress
    using (var gzipStream = new Ionic.Zlib.GZipStream(compressedStream, Ionic.Zlib.CompressionMode.Compress,
               leaveOpen: true))
    {
        streamToCompress.CopyTo(gzipStream);
    }

    compressedStream.Position = 0;

    // Decompress using GZipStream
    var decompressedStream = new MemoryStream();
    using (var gzipStream = new Ionic.Zlib.GZipStream(compressedStream, Ionic.Zlib.CompressionMode.Decompress))
    {
        gzipStream.CopyTo(decompressedStream);
    }

    // Reset the position of the decompressed stream to the beginning
    decompressedStream.Position = 0;

    var originalFromDotNetZip = decompressedStream.ToArray();

    // Now compress and decompress using our component
    var originalFromComponent = _gzipCompressor.Decompress(_gzipCompressor.Compress(streamToCompress)).GetBytes();
    originalFromDotNetZip.Should().BeEquivalentTo(originalFromComponent);
}

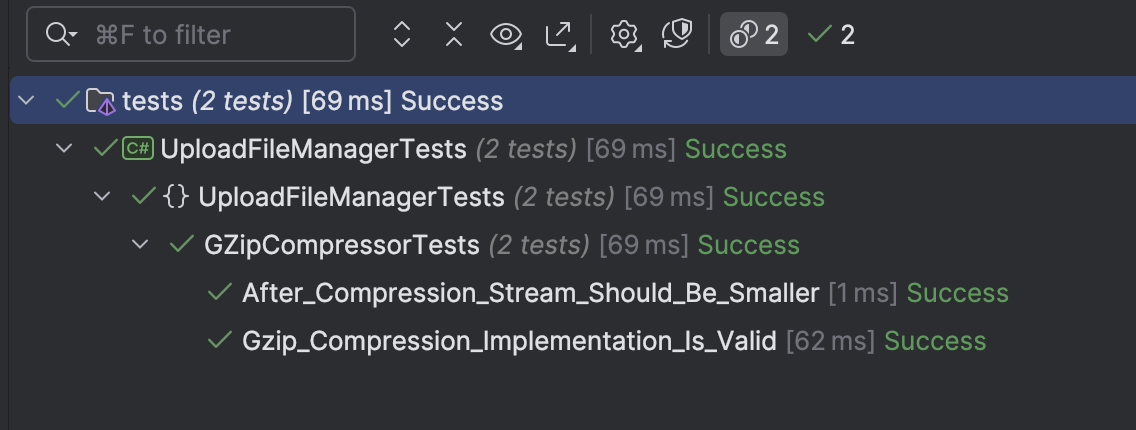

If we run our tests, we should see the following:

GzipVerification

Success!

In our next post, we will create a concrete implementation of the IFileEncryptor.

TLDR

In this post, we created a concrete implementation of the IFileCompressor interface and wrote tests to verify that it performs as expected.

The code is in my GitHub.

Happy Hacking!
