This is Part 9 of a series on Designing, Building & Packaging A Scalable, Testable .NET Open Source Component.

In our last post, we implemented the IFileCompressor interface via the GzipFileCompressor implementation.

In this post, we shall implement the next service - the IFileEncryptor.

The interface looks like this:

/// <summary>
/// File encryption & decryption contract
/// </summary>
public interface IFileEncryptor
{
    /// <summary>
    /// Compression algorithm to use
    /// </summary>
    EncryptionAlgorithm EncryptionAlgorithm { get; }

    /// <summary>
    /// Encrypt the stream
    /// </summary>
    /// <param name="data"></param>
    /// <returns></returns>
    public Stream Encrypt(Stream data);

    /// <summary>
    /// Decrypt the stream
    /// </summary>
    /// <param name="data"></param>
    /// <returns></returns>
    public Stream Decrypt(Stream data);
}

The AES standard for encryption requires two parameters - an initialization key and an initialization vector.

These must be provided to the service to carry out the encryption and decryption. To simplify it, we will have overloaded constructors that accept these parameters as byte arrays or strings.

These values will be stored and managed by the host application and passed to the component at runtime.

The implementation will look like this:

/// <summary>
/// Component to use Aes to encrypt streams
/// </summary>
public sealed class AesFileEncryptor : IFileEncryptor
{
    /// <inheritdoc />
    public EncryptionAlgorithm EncryptionAlgorithm => EncryptionAlgorithm.Aes;

    private readonly byte[] _key;
    private readonly byte[] _iv;

    /// <summary>
    /// Constructor that takes AES parameters as string
    /// </summary>
    /// <param name="key"></param>
    /// <param name="iv"></param>
    public AesFileEncryptor(string key, string iv)
    {
        _key = Encoding.Default.GetBytes(key);
        _iv = Encoding.Default.GetBytes(iv);
    }

    /// <summary>
    /// Constructor that takes AES parameters as byte arrays
    /// </summary>
    /// <param name="key"></param>
    /// <param name="iv"></param>
    public AesFileEncryptor(byte[] key, byte[] iv)
    {
        _key = key;
        _iv = iv;
    }

    /// <inheritdoc />
    public Stream Encrypt(Stream data)
    {
        // Create Aes object & initialize
        using var aes = Aes.Create();
        aes.Key = _key;
        aes.IV = _iv;
        aes.Mode = CipherMode.CBC;
        aes.Padding = PaddingMode.PKCS7;

        var outputStream = new MemoryStream();

        // Encrypt
        using (var cryptoStream =
               new CryptoStream(outputStream, aes.CreateEncryptor(), CryptoStreamMode.Write, leaveOpen: true))
        {
            data.CopyTo(cryptoStream);
            cryptoStream.FlushFinalBlock();
        }

        outputStream.Position = 0;
        return outputStream;
    }

    /// <inheritdoc />
    public Stream Decrypt(Stream data)
    {
        // Create Aes object & initialize
        using var aes = Aes.Create();
        aes.Key = _key;
        aes.IV = _iv;
        aes.Mode = CipherMode.CBC;
        aes.Padding = PaddingMode.PKCS7;

        var outputStream = new MemoryStream();

        // Decrypt
        using (var cryptoStream = new CryptoStream(data, aes.CreateDecryptor(), CryptoStreamMode.Read, leaveOpen: true))
        {
            cryptoStream.CopyTo(outputStream);
        }

        outputStream.Position = 0;
        return outputStream;
    }
}

Next, we turn our attention to testing.

Again, we must ask - what are we testing?

  1. That a payload that is encrypted and decrypted must match the original
  2. The encrypted payload must be different from the decrypted payload.

The test will look like this:

public class AesFileEncryptorTests
{
    private readonly byte[] _key;
    private readonly byte[] _iv;

    public AesFileEncryptorTests()
    {
        using var aes = Aes.Create();
        aes.KeySize = 256;
        aes.GenerateKey();
        aes.GenerateIV();

        _key = aes.Key;
        _iv = aes.IV;
    }

    [Fact]
    public void Encryption_And_Decryption_Is_Successful()
    {
        var faker = new Faker();
        var originalData = faker.Lorem.Sentences(10);
        var dataToCompress = Encoding.UTF8.GetBytes(originalData);
        var streamToCompress = new MemoryStream(dataToCompress);
        var encryptor = new AesFileEncryptor(_key, _iv);

        // Encrypt the stream and fetch data
        using (var encryptedStream = encryptor.Encrypt(streamToCompress))
        {
            var encryptedData = encryptedStream.GetBytes();

            using (var decryptedStream = encryptor.Decrypt(encryptedStream))
            {
                var decryptedData = decryptedStream.GetBytes();

                // Check encryption actually changed the data
                encryptedData.Should().NotBeEquivalentTo(originalData);
                // Check decompressed data matches original data
                decryptedData.Should().BeEquivalentTo(dataToCompress);
            }
        }
    }
}

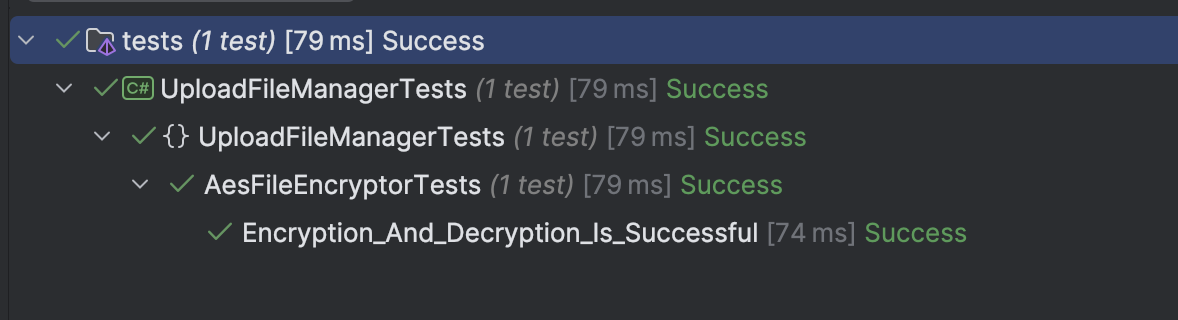

If we run this test:

AESTests

And with this, our service for encryption and decryption is complete.

In our next post, we will implement the IFilePersistor interface to actually store the file.

TLDR

In this post, we created an AesFileEncryptor component that implemented the IFileEncryptor interface and wrote tests to verify its functionality.

The code is in my GitHub.

Happy hacking!
