This is Part 2 of a series on SQL injection.

In our last post, we saw how SQL injection actually works and how a carefully constructed payload can allow a hacker to gain access to a system.

The fact that the attacker can run any query means they can also execute queries that do more than grant them access - they can manipulate data and even modify and drop database objects. And for sophisticated database engines that allow for operating system access, even more damage can be wrought.

To protect from this, we approach constructing queries differently.

Instead of concatenating strings to build queries, we can make use of an ADO.NET object - the DBParameter.

All providers have implementations of this object. Parameters essentially allow you to directly set values for the provider to construct queries correctly. The implementation of this is that every command has a Parameters collection to which you can add parameters by specifying their names and their values.

Rather than build the query through string concatenation, you specify in the command text of the query the parameters that you will provide by name, prefixed with a @ (or a :, or a $ for Sqlite).

// Set the command query text
cmd.CommandText = "SELECT 1 FROM USERS WHERE Username=@Username AND Password=@Password";
// Add the parameters
cmd.Parameters.AddWithValue("@Username", request.Username);
cmd.Parameters.AddWithValue("@Password", request.Password);

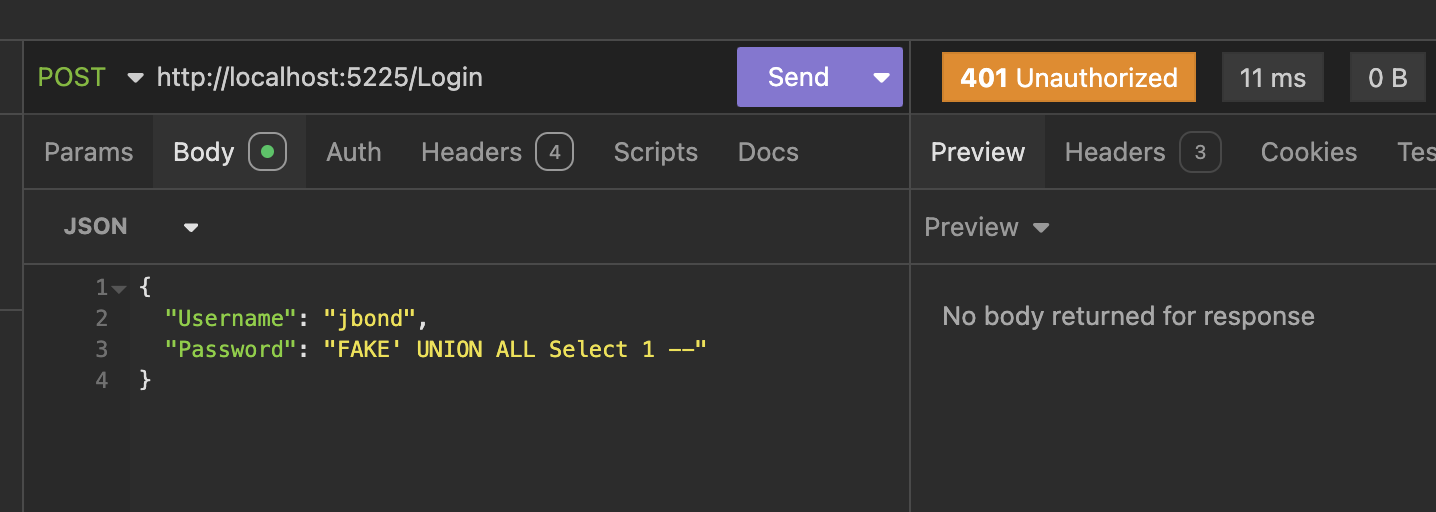

If we now try to submit an attack payload, it fails.

InjectionParameterFail

This is because the entirety of the payload is substituted for the parameter value. In other words, the entirety of the password payload, FAKE' UNION ALL Select 1 -- is considered the password. This is why it fails because that is not a valid password.

Another benefit of using parameters is it avoids the problems you will get with string concatenation when the payload contains characters that are considered special by the database engine, such as apostrophes.

A name like Ng’ang’a will trip up the database engine if you build the query using string concatenation, as it will consider the username to have ended at the Ng. Thus, the rest is invalid SQL.

We can visualize how the parameters are populated like this:

// Set the command query text
cmd.CommandText = "SELECT 1 FROM USERS WHERE Username=@Username AND Password=@Password";
// Add the parameters
cmd.Parameters.AddWithValue("@Username", request.Username);
cmd.Parameters.AddWithValue("@Password", request.Password);
// Loop through the parameters and print the name and value
foreach (SqliteParameter param in cmd.Parameters)
{
    logger.LogWarning("Parameter Name: {Name}; Value: {Value}", param.ParameterName, param.Value);
}

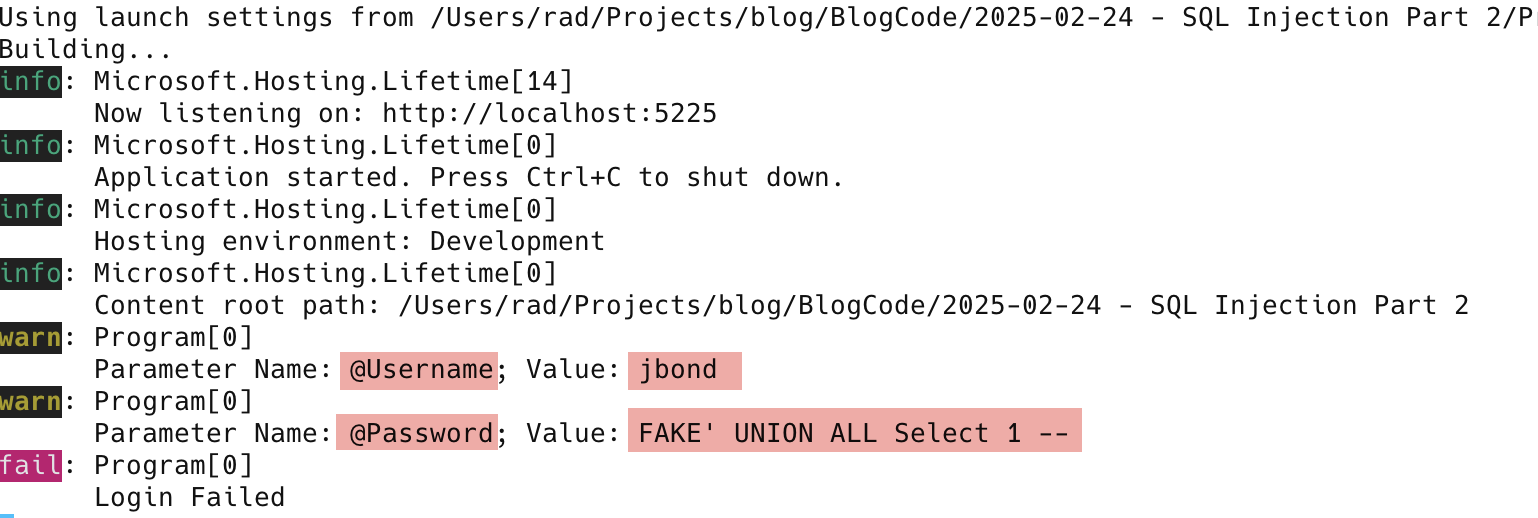

If we re-run the API and view the logs, we will see the following:

InjectionViewParameters

Parameters also allow you to mitigate against another attack - excessively large payloads.

For example, in our database we have specified that the size of the Username and Password columns is 100 characters. We can therefore truncate any incoming payloads to that length with this knowledge. You do that by setting the Size property as follows:

cmd.Parameters.AddWithValue("@Username", request.Username).Size = 100;
cmd.Parameters.AddWithValue("@Password", request.Password).Size = 100;

You can also explicitly create SqliteParameter objects and then add them to the command like this:

cmd.CommandText = "SELECT 1 FROM USERS WHERE Username=@Username AND Password=@Password";
//
// Add the parameters
//

// Create the Username parameter
var paramUsername = cmd.CreateParameter();
// Set the data type
paramUsername.SqliteType = SqliteType.Text;
// Set the parameter name
paramUsername.ParameterName = "@Username";
// Set the parameter size
paramUsername.Size = 100;
// Set the parameter value
paramUsername.Value = request.Username;
// Add the parameter to the command object
cmd.Parameters.Add(paramUsername);

// Password
cmd.Parameters.AddWithValue("@Password", request.Password).Size = 100;

TLDR

Parameters can be used to mitigate SQL injection, by setting the values directly so that the database engine will correctly interpret the query command text.

The code is in my GitHub.

Happy hacking!
