This is Part 7 of a series on sending email.

Our last post in the series, Sending Email In C# & .NET - Part 6 - Testing SMTP Locally Using PaperCut, we looked at how to use PaperCut to test our email generation and sending.

In this post, we will look at how to send inline images in an email.

An inline image is one where the image is rendered within the email, and not as an attachment.

For this option, the email will have to be HTML. For obvious reasons, you cannot do plain text with inline images.

We shall look at two scenarios:

  1. The image is on the file system
  2. The image is retrieved from elsewhere, e.g., object storage, database, etc.

Image From File System

The steps are as follows:

  1. Create a MailMessage.
  2. Create the email body in HTML.
  3. Create an AlternateView with the HTML.
  4. Create a LinkedResource with an identifier.
  5. Link the alternate view HTML with the LinkedResource.
  6. Add the AlternateView to the email.
  7. Send email
using System.Net;
using System.Net.Mail;
using System.Net.Mime;
using Serilog;

// Setup logging
Log.Logger = new LoggerConfiguration().WriteTo.Console().CreateLogger();

var mail = new MailMessage();
mail.From = new MailAddress("operations@MI5.co.uk", "M");
mail.To.Add(new MailAddress("jbond@MI5.co.uk", "James Bond"));
mail.Subject = "Happy Birthday James";

// HTML body with image reference to linked resource by ID
const string htmlBody = """
                        <html><body>
                        Good afternoon.
                        <br>
                        Have a happy birthday today!
                        <br>
                        <br>
                        <img src='cid:Image1' />
                        </body></html>
                        """;

// AlternateView for HTML with linked image
var htmlView = AlternateView.CreateAlternateViewFromString(htmlBody, null, MediaTypeNames.Text.Html);

// Load image and link it to the HTML view
var passPortPhoto = new LinkedResource("jamesBond.png", MediaTypeNames.Image.Jpeg)
{
    ContentId = "Image1",
    ContentType = new ContentType("image/jpeg"),
    TransferEncoding = TransferEncoding.Base64
};

htmlView.LinkedResources.Add(passPortPhoto);
mail.AlternateViews.Add(htmlView);

// Create SMTPClient
var smtpClient = new SmtpClient
{
    Host = "localhost",
    Port = 25,
    Credentials = CredentialCache.DefaultNetworkCredentials
};

// Send the email
try
{
    Log.Information("Sending email");
    smtpClient.Send(mail);
    Log.Information("Email sent");
}
catch (Exception ex)
{
    Log.Error(ex, "Error sending email");
}

The ContentID here is what you will use to link the LinkedResource to the HTML body, where the image source is specified using cid:<ID>:

<html><body>
Good afternoon.
<br>
Have a happy birthday today!
<br>
<br>
<img src='cid:Image1' />
</body></html>

For the SMTP server, we will use PaperCut.

If we send this email, we should see the following in PaperCut:

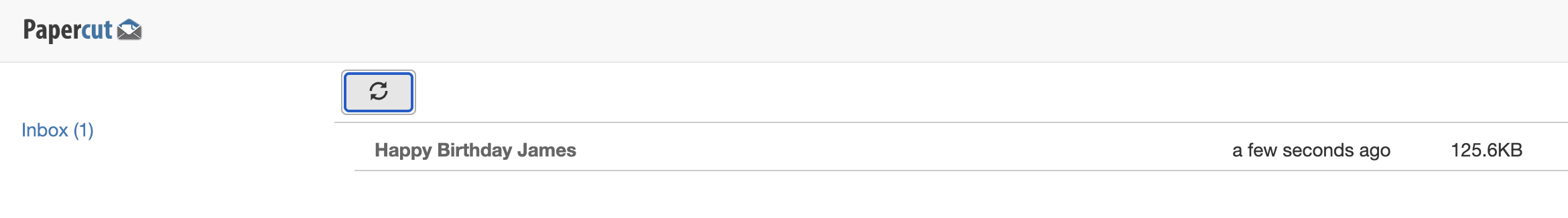

NewMail

If we open this, we should see the following:

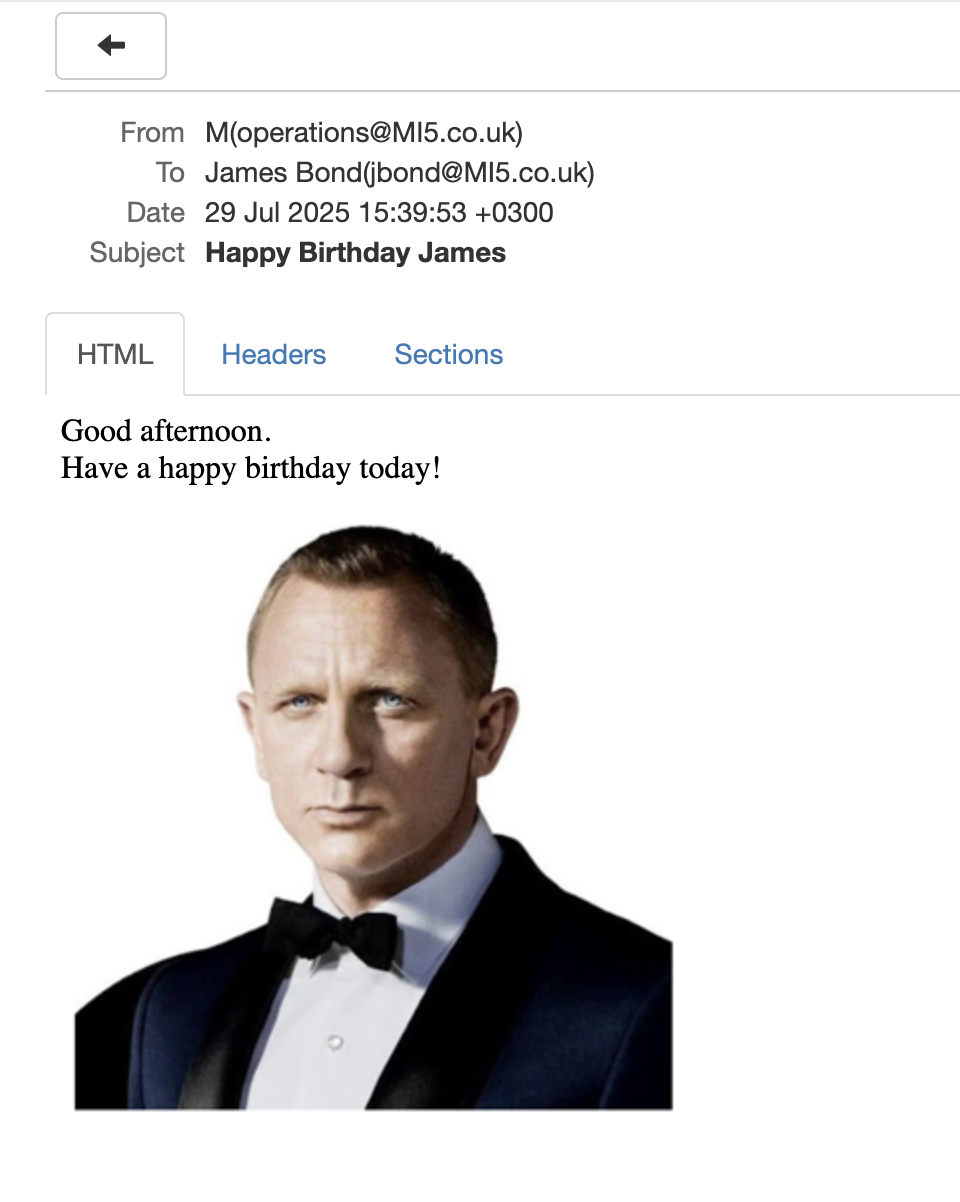

InlineEmail

We can see here that the image is rendered within the email body.

Image From Elsewhere

If your image is not sourced from the file system, we can construct a linked resource like this:

var bytes = File.ReadAllBytes("jamesBond.png");
var stream = new MemoryStream(bytes);
// Load image and link it to the HTML view
var passPortPhoto = new LinkedResource(stream, MediaTypeNames.Image.Png)
{
    ContentId = "Image1",
    ContentType = new ContentType(MediaTypeNames.Image.Png),
    TransferEncoding = TransferEncoding.Base64
};

The email should be sent successfully.

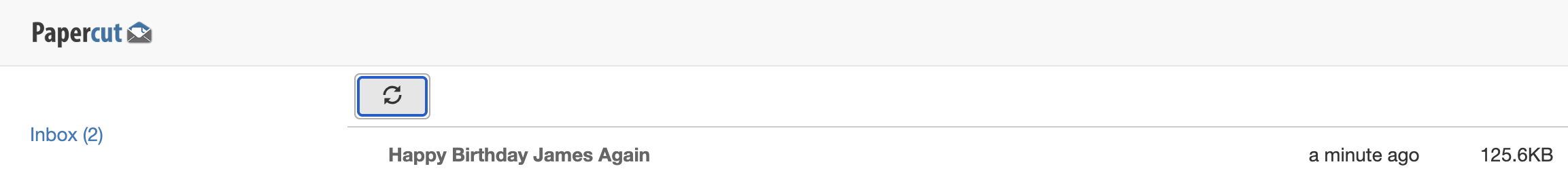

MailFromStream

And the details are as expected:

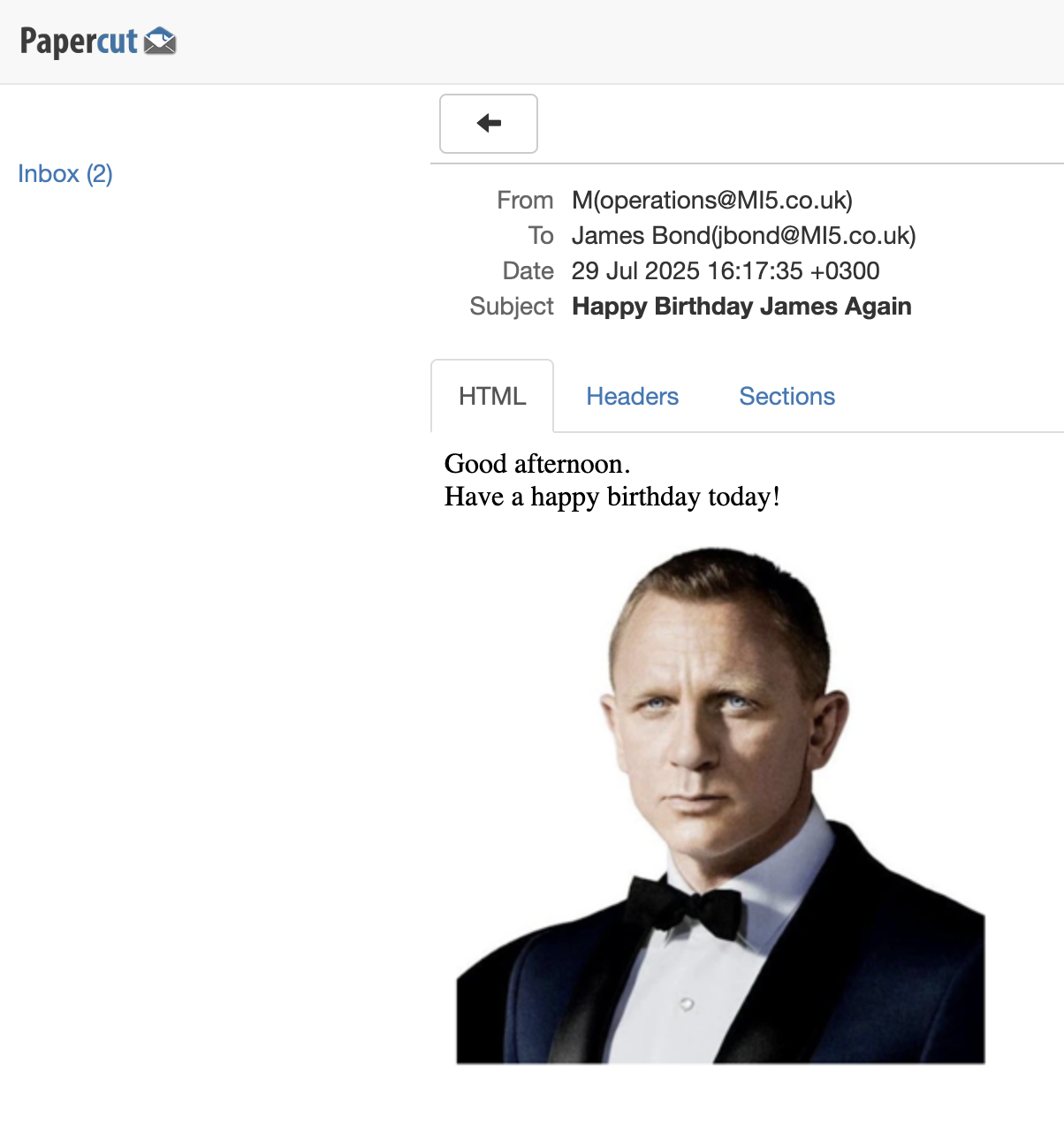

MailFromStreamDetails

When using a Stream, ensure that the stream is not disposed of prior to sending the email.

The code is in my GitHub.

Happy hacking!
