Using State Machines In .NET - Part 1 - Introduction

This is Part 1 of a series on using State Machines to express complex logic.

• Using State Machines In .NET - Part 1 - Introduction (This Post)
• Using State Machines In .NET - Part 2 - Basic Usage
• Using State Machines In .NET - Part 3 - Setting Initial State
• Using State Machines In .NET - Part 4 - Using Multiple Triggers
• Using State Machines In .NET - Part 5 - Using Complex & Nested States

Suppose you are modeling a traffic light.

This sounds simple enough.

You would probably have an enum to define the states:

public enum Status
{
    Red,
    Amber,
    Green
}

You would then model an event that transitions between the states.

public void Transition(){}

Within this body, we will transition between the states.

We then add a property to store the current state of the light.

public Status CurrentStatus { get; private set; }

Finally, we wrap everything in a class.

public sealed class TrafficLight
{
    // Public property to retrieve the status
    public Status CurrentStatus { get; private set; }

    // Internal field to help with amber tracking
    private Status _priorStatus;

    public TrafficLight()
    {
        CurrentStatus = Status.Red;
        _priorStatus = Status.Red;
    }

    public void Transition()
    {
        // Logic here
    }
}

The logic is as follows:

1. If the light is Red, transition to Amber.
2. If the light is Amber, and was previously Red, transition to Green
3. if the light is Amber, and was previously Green, transition to Red

The final code will look like this:

public sealed class TrafficLight
{
    // Public property to retrieve the status
    public Status CurrentStatus { get; private set; }

    // Internal field to help with amber tracking
    private Status _priorStatus;

    public TrafficLight()
    {
        CurrentStatus = Status.Red;
        _priorStatus = Status.Red;
    }

    public void Transition()
    {
        if (CurrentStatus == Status.Red)
        {
            _priorStatus = CurrentStatus;
            CurrentStatus = Status.Amber;
        }
        else if (CurrentStatus == Status.Amber && _priorStatus == Status.Red)
        {
            CurrentStatus = Status.Green;
        }
        else if (CurrentStatus == Status.Amber && _priorStatus == Status.Green)
        {
            CurrentStatus = Status.Red;
        }
        else if (CurrentStatus == Status.Green)
        {
            _priorStatus = CurrentStatus;
            CurrentStatus = Status.Amber;
        }
    }
}

Let us create some unit tests to verify our logic.

public class TrafficLightTests
{
    [Fact]
    public void Lights_Change_Correctly()
    {
        var light = new TrafficLight();
        light.CurrentStatus.Should().Be(Status.Red);
        light.Transition();
        light.CurrentStatus.Should().Be(Status.Amber);
        light.Transition();
        light.CurrentStatus.Should().Be(Status.Green);
        light.Transition();
        light.CurrentStatus.Should().Be(Status.Amber);
        light.Transition();
        light.CurrentStatus.Should().Be(Status.Red);
        light.Transition();
        light.CurrentStatus.Should().Be(Status.Amber);
    }
}

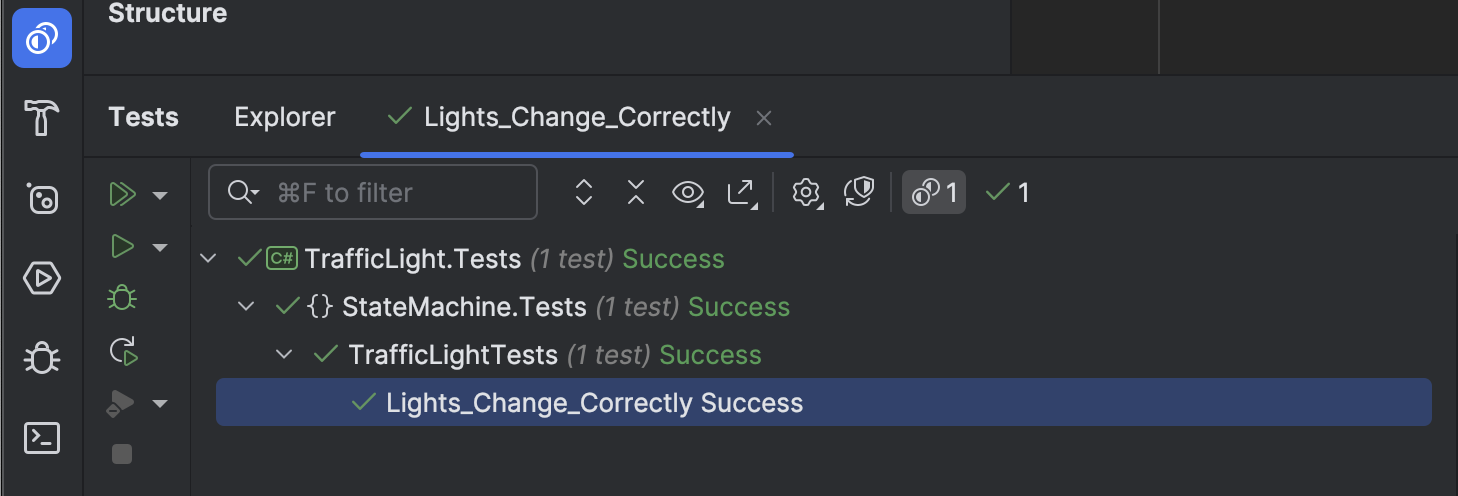

When we run our tests, all seems to be in order.

Let us turn our attention to the transition logic again;

  public void Transition()
  {
      if (CurrentStatus == Status.Red)
      {
          _priorStatus = CurrentStatus;
          CurrentStatus = Status.Amber;
      }
      else if (CurrentStatus == Status.Amber && _priorStatus == Status.Red)
      {
          CurrentStatus = Status.Green;
      }
      else if (CurrentStatus == Status.Amber && _priorStatus == Status.Green)
      {
          CurrentStatus = Status.Red;
      }
      else if (CurrentStatus == Status.Green)
      {
          _priorStatus = CurrentStatus;
          CurrentStatus = Status.Amber;
      }
  }

We want to add some new logic.

There is no need to keep the lights working in the middle of the night. If it is past midnight and the state is Red or Green, transition to Amber. In the morning, at 6:00 AM, revert to the original schedule.

We need to make some changes to our code.

1. Given that time is now a factor, we need to inject a TimeProvider to make it testable
2. We need to update our logic

public sealed class TrafficLight
{
    private readonly TimeProvider _provider;

    // Public property to retrieve the status
    public Status CurrentStatus { get; private set; }

    // Internal field to help with amber tracking
    private Status _priorStatus;

    public TrafficLight(TimeProvider provider)
    {
        _provider = provider;
        CurrentStatus = Status.Red;
        _priorStatus = Status.Red;
    }

    public void Transition()
    {
        // Fetch the current time
        var currentTime = TimeOnly.FromTimeSpan(_provider.GetLocalNow().TimeOfDay);
        // Get midnight
        var midnight = new TimeOnly(0, 0, 0);
        // Get 6 AM
        var sixAm = new TimeOnly(6, 0, 0);
        // Check whether ot use night logic or day logic
        if (currentTime >= midnight && currentTime < sixAm)
        {
            // Transition to Amber, if not already
            if (CurrentStatus != Status.Amber)
            {
                _priorStatus = CurrentStatus;
                CurrentStatus = Status.Amber;
            }
        }
        else
        {
            // Normal schedule
            if (CurrentStatus == Status.Red)
            {
                _priorStatus = CurrentStatus;
                CurrentStatus = Status.Amber;
            }
            else if (CurrentStatus == Status.Amber && _priorStatus == Status.Red)
            {
                CurrentStatus = Status.Green;
            }
            else if (CurrentStatus == Status.Amber && _priorStatus == Status.Green)
            {
                CurrentStatus = Status.Red;
            }
            else if (CurrentStatus == Status.Green)
            {
                _priorStatus = CurrentStatus;
                CurrentStatus = Status.Amber;
            }
        }
    }
}

We should also update our tests to verify our logic works.

public class TrafficLightTests
{
    [Theory]
    [InlineData(6, 00)]
    [InlineData(12, 00)]
    [InlineData(11, 59)]
    public void Lights_Change_Correctly_During_The_Day(int hour, int minute)
    {
        var currentDate = DateTime.Now;
        var provider = new FakeTimeProvider();
        provider.SetUtcNow(new DateTime(currentDate.Year, currentDate.Month, currentDate.Day, hour, minute, 0));
        var light = new TrafficLight(provider);
        light.CurrentStatus.Should().Be(Status.Red);
        light.Transition();
        light.CurrentStatus.Should().Be(Status.Amber);
        light.Transition();
        light.CurrentStatus.Should().Be(Status.Green);
        light.Transition();
        light.CurrentStatus.Should().Be(Status.Amber);
        light.Transition();
        light.CurrentStatus.Should().Be(Status.Red);
        light.Transition();
        light.CurrentStatus.Should().Be(Status.Amber);
    }

    [Theory]
    [InlineData(0, 0)]
    [InlineData(5, 59)]
    public void Lights_Change_Correctly_During_The_Night(int hour, int minute)
    {
        var currentDate = DateTime.Now;
        var provider = new FakeTimeProvider();
        provider.SetUtcNow(new DateTimeOffset(currentDate.Year, currentDate.Month, currentDate.Day, hour, minute, 0,
            TimeSpan.Zero));
        var light = new TrafficLight(provider);
        light.Transition();
        light.CurrentStatus.Should().Be(Status.Amber);
        light.Transition();
        light.CurrentStatus.Should().Be(Status.Amber);
        light.Transition();
        light.CurrentStatus.Should().Be(Status.Amber);
        light.Transition();
        light.CurrentStatus.Should().Be(Status.Amber);
        light.Transition();
        light.CurrentStatus.Should().Be(Status.Amber);
    }
}

Our logic for the valid state transitions is now starting to get complicated.

Suppose we now had a new rule - for public holidays.

Our already busy logic will get even busier as we need to do a lot of work to ensure that our state transitions are valid.

This class of problem lends itself well to a construct known as a State Machine.

In the next post, we will examine how State Machines can help with such problems.

TLDR

Tracking valid state transitions in an object can quickly become overwhelming as the number of states and valid transitions grows

The code is in my GitHub.

Happy hacking!
