This is Part 3 of a series on using State Machines to express complex logic.

Our last post examined how to use a state machine to capture and process increasingly complicated logic.

In this post we will look at a scenario where we need to start from a state that is not the initial state.

As a recap, our logic looked like this:

public TrafficLight(TimeProvider provider)
{
    // Declare a bunch of holidays
    var christmasDay = new DateOnly(2025, 12, 25);
    var boxingDay = new DateOnly(2025, 12, 26);
    var newYearsDay = new DateOnly(2025, 1, 1);

    // Set the array
    _holidays = [christmasDay, boxingDay, newYearsDay];

    // Assign the provider
    _provider = provider;

    // Create the state machine, and set the initial state as red
    _stateMachine = new StateMachine<Status, Trigger>(Status.Red);

    //
    // Configure state machine
    //

    // If red, can only transition to amber from red
    _stateMachine.Configure(Status.Red)
        .Permit(Trigger.NormalTimerTick, Status.AmberFromRed)
        .Permit(Trigger.NightTimerTick, Status.AmberFromRed)
        .Permit(Trigger.PublicHolidayTimerTick, Status.AmberFromRed);

    _stateMachine.Configure(Status.AmberFromRed)
        .Permit(Trigger.NormalTimerTick, Status.Green)
        // Since state is already AmberFromRed, ignore transitions
        .Ignore(Trigger.NightTimerTick)
        .Ignore(Trigger.PublicHolidayTimerTick);

    _stateMachine.Configure(Status.Green)
        .Permit(Trigger.NormalTimerTick, Status.AmberFromGreen)
        .Permit(Trigger.NightTimerTick, Status.AmberFromRed)
        .Permit(Trigger.PublicHolidayTimerTick, Status.AmberFromRed);

    _stateMachine.Configure(Status.AmberFromGreen)
        .Permit(Trigger.NormalTimerTick, Status.Red)
        .Permit(Trigger.NightTimerTick, Status.AmberFromRed)
        .Permit(Trigger.PublicHolidayTimerTick, Status.AmberFromRed);
}

We can see here that our initial state is always Red. This means whenever a traffic light is turned on, it always starts from the Red state.

This is 100% correct.

The problem arises in a scenario where we, for example, need to persist the traffic light state to a database and reload it.

In this case it is not a valid assumption to set the initial state to Red.

In such a scenario, we can address it by writing a constructor that takes the initial position as a parameter.

public TrafficLight(TimeProvider provider, Status state)
{
    // Declare a bunch of holidays
    var christmasDay = new DateOnly(2025, 12, 25);
    var boxingDay = new DateOnly(2025, 12, 26);
    var newYearsDay = new DateOnly(2025, 1, 1);

    // Set the array
    _holidays = [christmasDay, boxingDay, newYearsDay];

    // Assign the provider
    _provider = provider;

    // Create the state machine, and set the initial state as red
    _stateMachine = new StateMachine<Status, Trigger>(state);

    //
    // Configure state machine
    //

    // If red, can only transition to amber from red
    _stateMachine.Configure(Status.Red)
        .Permit(Trigger.NormalTimerTick, Status.AmberFromRed)
        .Permit(Trigger.NightTimerTick, Status.AmberFromRed)
        .Permit(Trigger.PublicHolidayTimerTick, Status.AmberFromRed);

    _stateMachine.Configure(Status.AmberFromRed)
        .Permit(Trigger.NormalTimerTick, Status.Green)
        // Since state is already AmberFromRed, ignore transitions
        .Ignore(Trigger.NightTimerTick)
        .Ignore(Trigger.PublicHolidayTimerTick);

    _stateMachine.Configure(Status.Green)
        .Permit(Trigger.NormalTimerTick, Status.AmberFromGreen)
        .Permit(Trigger.NightTimerTick, Status.AmberFromRed)
        .Permit(Trigger.PublicHolidayTimerTick, Status.AmberFromRed);

    _stateMachine.Configure(Status.AmberFromGreen)
        .Permit(Trigger.NormalTimerTick, Status.Red)
        .Permit(Trigger.NightTimerTick, Status.AmberFromRed)
        .Permit(Trigger.PublicHolidayTimerTick, Status.AmberFromRed);
}

We then write another constructor that, should not state be specified, initialize from Red.

public TrafficLight(TimeProvider provider) : this(provider, Status.Red)
{
}

Alternatively, we can write a single parameter with the state as an optional parameter.

public TrafficLight(TimeProvider provider, Status state = Status.Red)
{
  // Declare a bunch of holidays
  var christmasDay = new DateOnly(2025, 12, 25);
  var boxingDay = new DateOnly(2025, 12, 26);
  var newYearsDay = new DateOnly(2025, 1, 1);

  // Set the array
  _holidays = [christmasDay, boxingDay, newYearsDay];

  // Assign the provider
  _provider = provider;

  // Create the state machine, and set the initial state as red
  _stateMachine = new StateMachine<Status, Trigger>(state);

  //
  // Configure state machine
  //

  // If red, can only transition to amber from red
  _stateMachine.Configure(Status.Red)
      .Permit(Trigger.NormalTimerTick, Status.AmberFromRed)
      .Permit(Trigger.NightTimerTick, Status.AmberFromRed)
      .Permit(Trigger.PublicHolidayTimerTick, Status.AmberFromRed);

  _stateMachine.Configure(Status.AmberFromRed)
      .Permit(Trigger.NormalTimerTick, Status.Green)
      // Since state is already AmberFromRed, ignore transitions
      .Ignore(Trigger.NightTimerTick)
      .Ignore(Trigger.PublicHolidayTimerTick);

  _stateMachine.Configure(Status.Green)
      .Permit(Trigger.NormalTimerTick, Status.AmberFromGreen)
      .Permit(Trigger.NightTimerTick, Status.AmberFromRed)
      .Permit(Trigger.PublicHolidayTimerTick, Status.AmberFromRed);

  _stateMachine.Configure(Status.AmberFromGreen)
      .Permit(Trigger.NormalTimerTick, Status.Red)
      .Permit(Trigger.NightTimerTick, Status.AmberFromRed)
      .Permit(Trigger.PublicHolidayTimerTick, Status.AmberFromRed);
}

We then update our tests to ensure the logic is still sound.

[Theory]
[InlineData(Status.AmberFromRed, Status.Green)]
[InlineData(Status.Green, Status.AmberFromGreen)]
[InlineData(Status.AmberFromGreen, Status.Red)]
public void Lights_State_Is_Loaded_Correctly(Status initialState, Status nextState)
{
    var currentDate = DateTime.Now;
    var provider = new FakeTimeProvider();
    // Set time to midday
    provider.SetUtcNow(new DateTimeOffset(currentDate.Year, currentDate.Month, currentDate.Day, 12, 0, 0,
        TimeSpan.Zero));
    var light = new TrafficLight(provider, initialState);
    light.CurrentStatus.Should().Be(initialState);
    light.Transition();
    light.CurrentStatus.Should().Be(nextState);
}

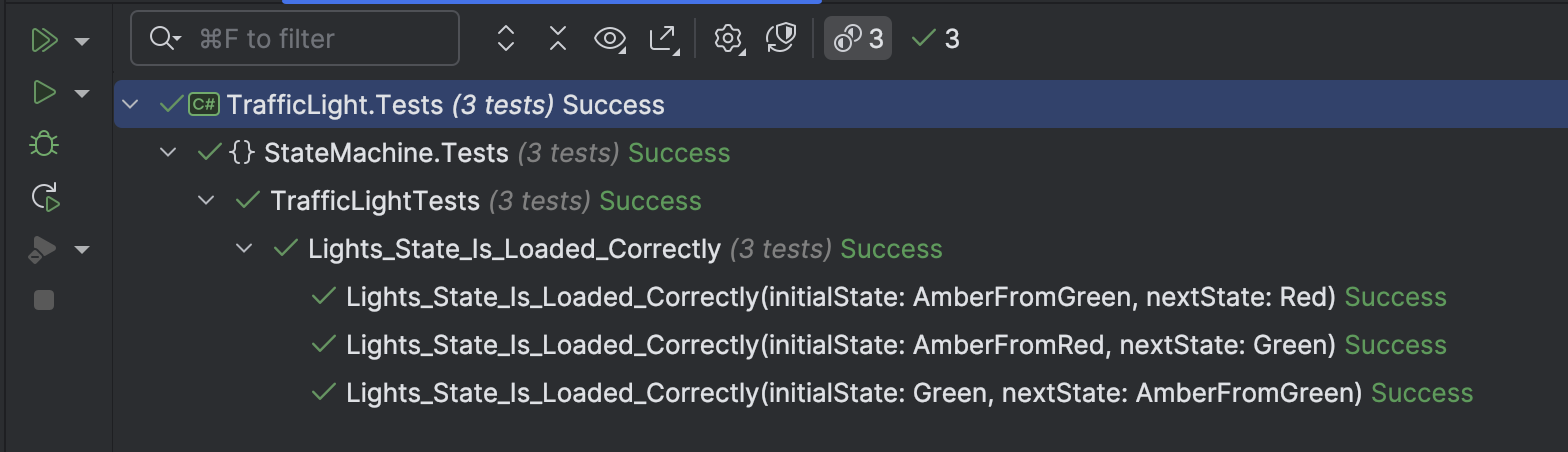

Our tests pass successfully.

TrafficLightsLoadedState

In our next post we will look at how to tackle transitions via different triggers.

TLDR

State machines can be initialized from any state to address scenarios like persistence to a data store.

The code is in my GitHub.

Happy hacking!
