The Microsoft Build Engine, MSBuild, is responsible for controlling the build process that translates source code to object code and its relevant artifacts.

MSBuild itself uses an XML file format to define various parameters that control the build process.

Below is a sample a sample .Net Core .csproj file for a console application.

<Project Sdk="Microsoft.NET.Sdk">
  <PropertyGroup>
    <OutputType>Exe</OutputType>
    <TargetFramework>net5.0</TargetFramework>
  </PropertyGroup>
</Project>

The code itself is pretty simple

static void Main(string[] args)
{
    Console.WriteLine("Hello World!");
}

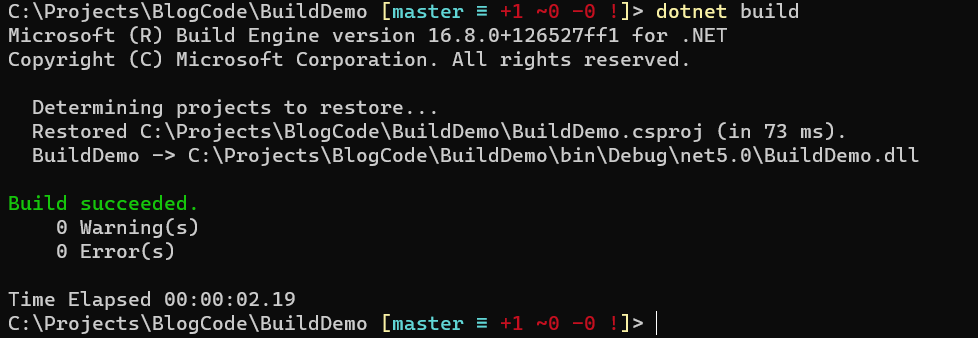

To build this we run the dotnet build command

Pretty straightforward so far.

By default, unless told otherwise, the compiler will emit a Debug build.

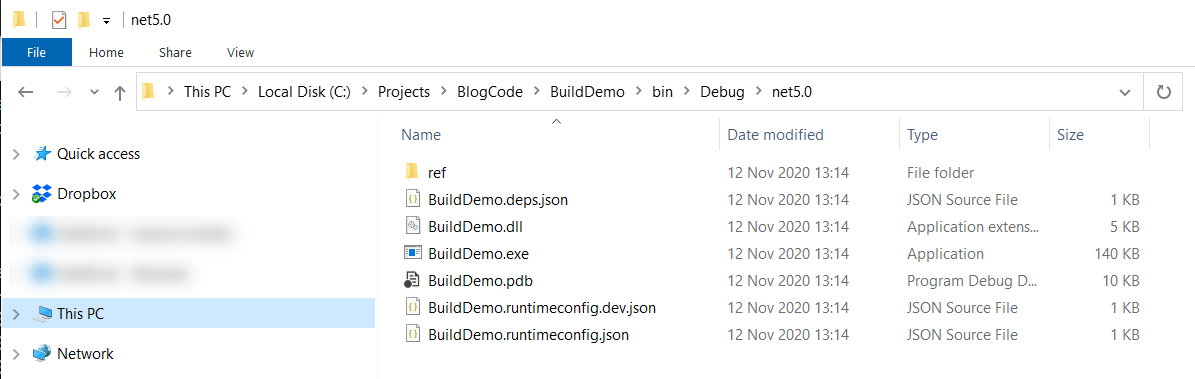

You can verify this by viewing the outputted files.

You can control the build this with the -c or --configuration (configuration) parameter.

So to get a release build we simply pass that as a parameter.

dotnet build -c Release

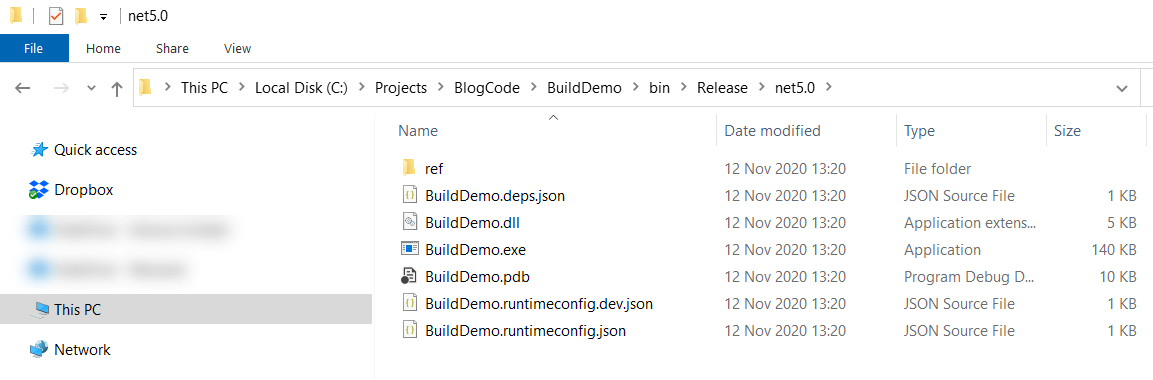

The output is as follows.

By the way, you can call the build configuration anything.

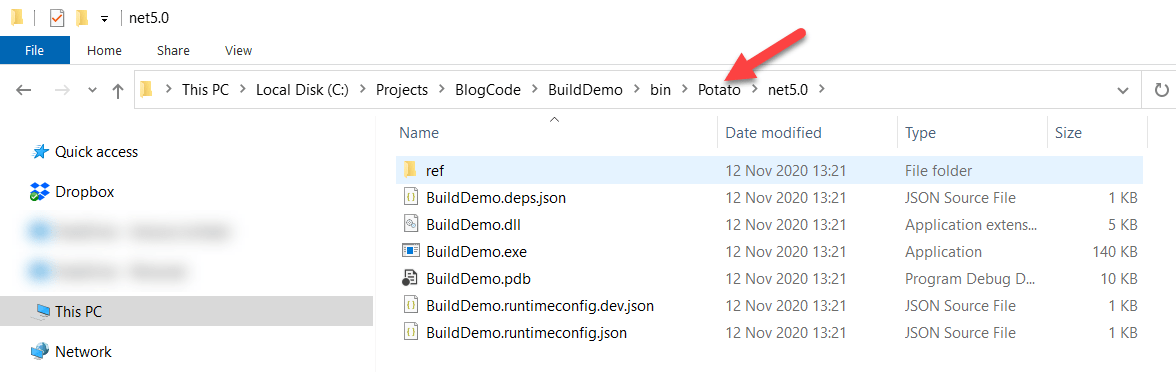

dotnet build -c Potato

You might want some conditional logic to happen during the build process, perhaps to output to a certain folder depending on the build configuration.

Let us say for instance we want the binary copied to a different folder, say C:\Temp. But only if it is a Release build.

We can add some configuration to the .cs project file to instruct MSBuild what to do.

It will look like this:

<Project Sdk="Microsoft.NET.Sdk">
  <PropertyGroup>
    <OutputType>Exe</OutputType>
    <TargetFramework>net5.0</TargetFramework>
  </PropertyGroup>

  <Target Name="PostBuild" AfterTargets="PostBuildEvent" Condition="'$(Configuration)'=='Release'">
    <Exec Command="copy $(TargetDir)* C:\Temp" />
  </Target>
</Project>

There are a few key attributes here

  • Name - name for the target
  • AfterTargets - when the logic should fire. In this case, we want it to happen after a successful build
  • Condition - the logic that controls the execution. Here we are checking if the build is Release.

The logic we want is to copy the outputted file to a target directory, using a command. The argument is the command to execute.

You might be wondering what $(TargetDir) is. This is a macro that MSBuild will expand to the full path to the generated output, in this case the full path to the .output. This will save you from having to hardcode the path.

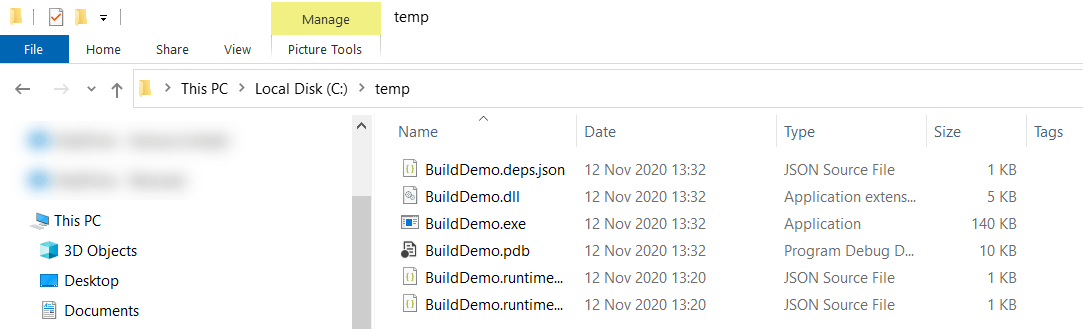

If we run the Release build configuration, yo should see this in your C:\Temp

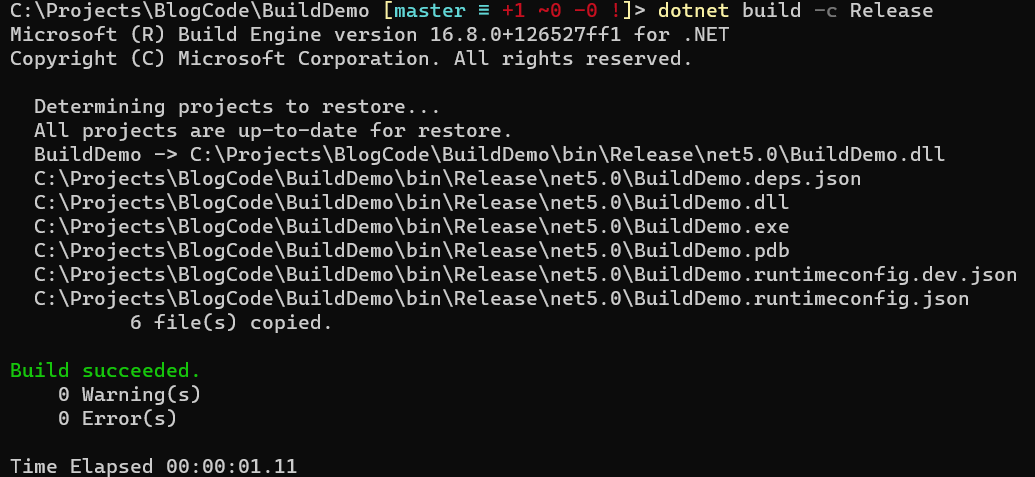

The output from the command should be like this:

To prove it only works for the Release build, you can clear the Temp folder and then run the build for a Debug configuration.

There is a slight challenge that it is not possible to visually tell from examining the output from the build process what has happened.

This can be solved using a Message task.

What we want to achieve is to output a message to the console that informs the observer what the build engine is doing.

The updated .csproj would look as follows:

<Project Sdk="Microsoft.NET.Sdk">
  <PropertyGroup>
    <OutputType>Exe</OutputType>
    <TargetFramework>net5.0</TargetFramework>
  </PropertyGroup>
  <Target Name="PostBuild" AfterTargets="PostBuildEvent" Condition="'$(Configuration)'=='Release'">
    <Message Text="Copying files from  $(TargetDir) to C:\Temp" Importance="High" />
    <Exec Command="copy $(TargetDir)* C:\Temp" />
  </Target>
</Project>

The importance needs to be set to high so that MSBuild always prints the message. By default, messages that are not of high priority are not printed.

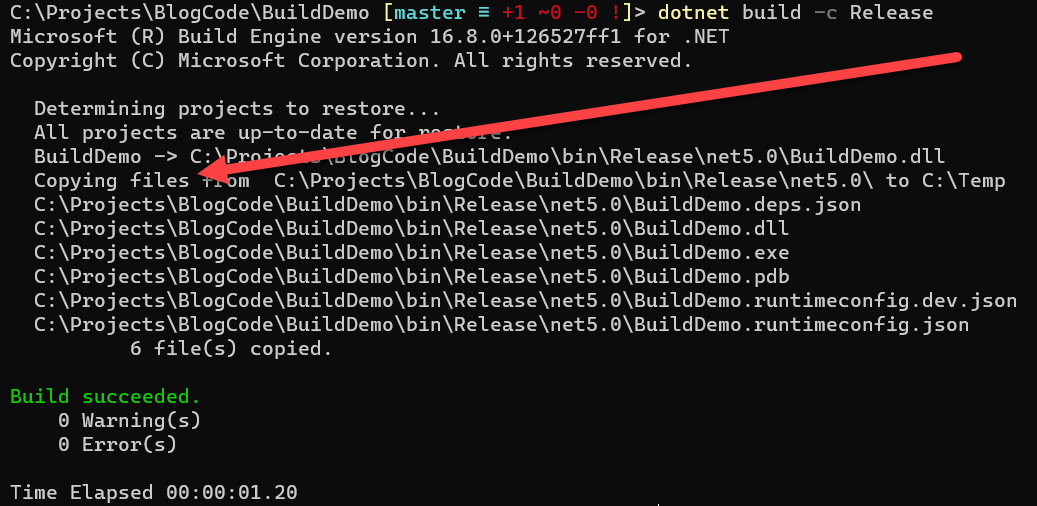

If you run the Release build, the output should have this additional line

The code is in my Github.

Happy hacking!
